TPUH408TU-UK

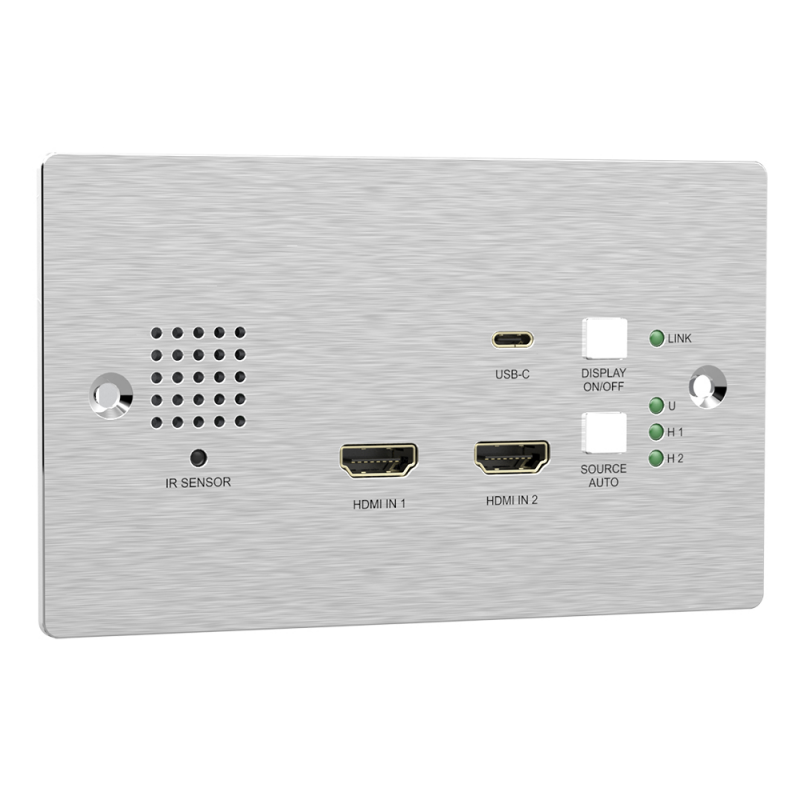

The TPUH408TU-UK is a 3x1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or Slimport input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable.

Features

●  Supports HDMI signal up to 4K@60Hz 4:2:0, Slimport signal up to 4K@30Hz 4:4:4.

●  Supports HDMI 4K standard and HDCP 2.2 compliant. Ensures display of content-protected media and interoperability with other HDCP compliant devices.

●  Active input automatic detective.

●  Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080P@60Hz up to 229ft/70m.

●  Supports RS232 pass-through with HDBaseT connection and local control.

●  Supports IR pass-through to extend IR signal to control display device.

●  The DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command.

●  The HDBT port supports 24V-48V PoC input, the switcher can be powered from the compatible HDBaseT receiver by the CATx cable, and it also supports 24V PoC output.

●  Firmware upgrade by Micro-USB port.
