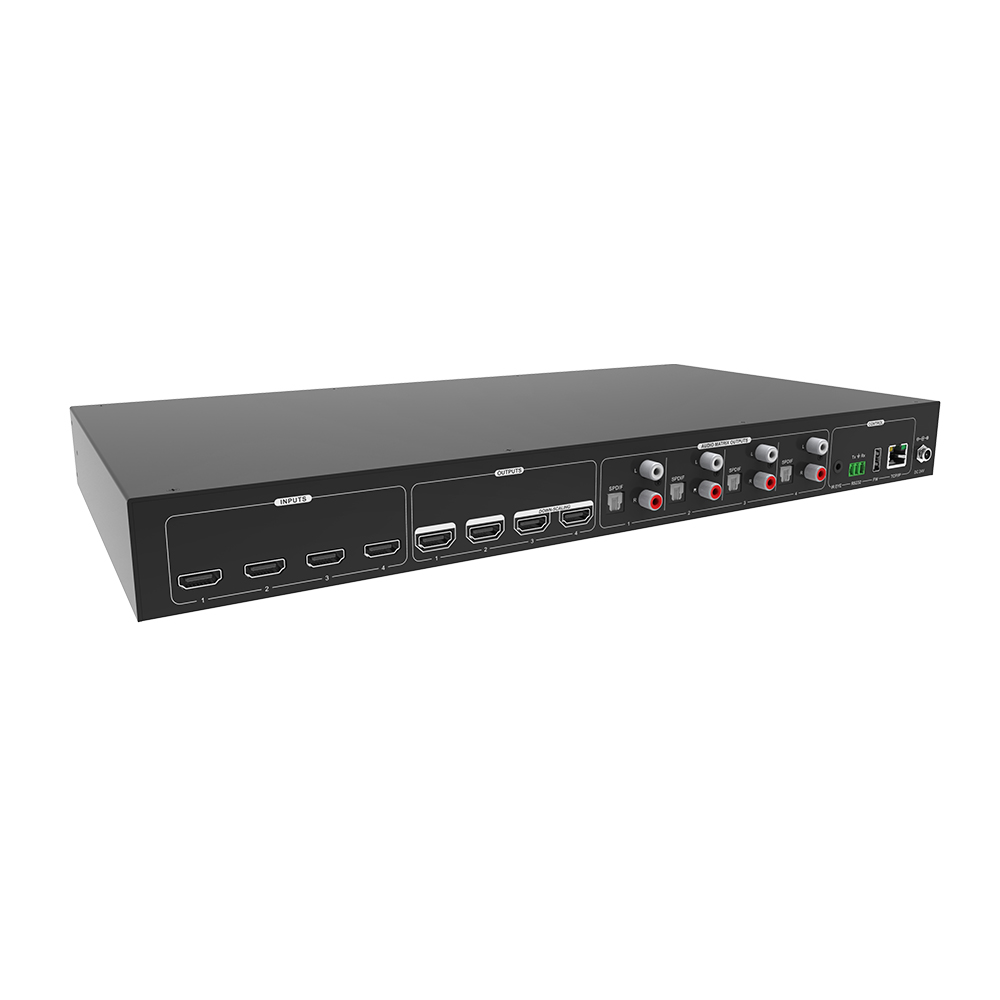

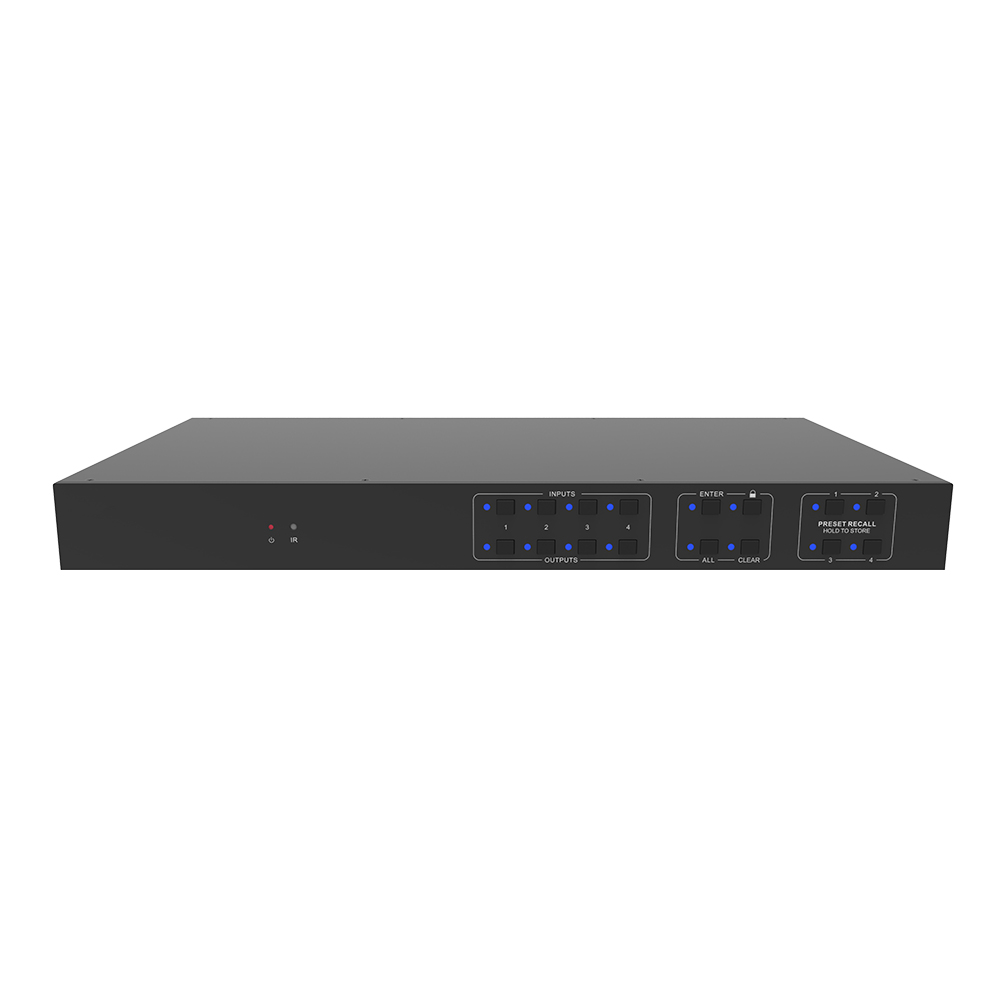

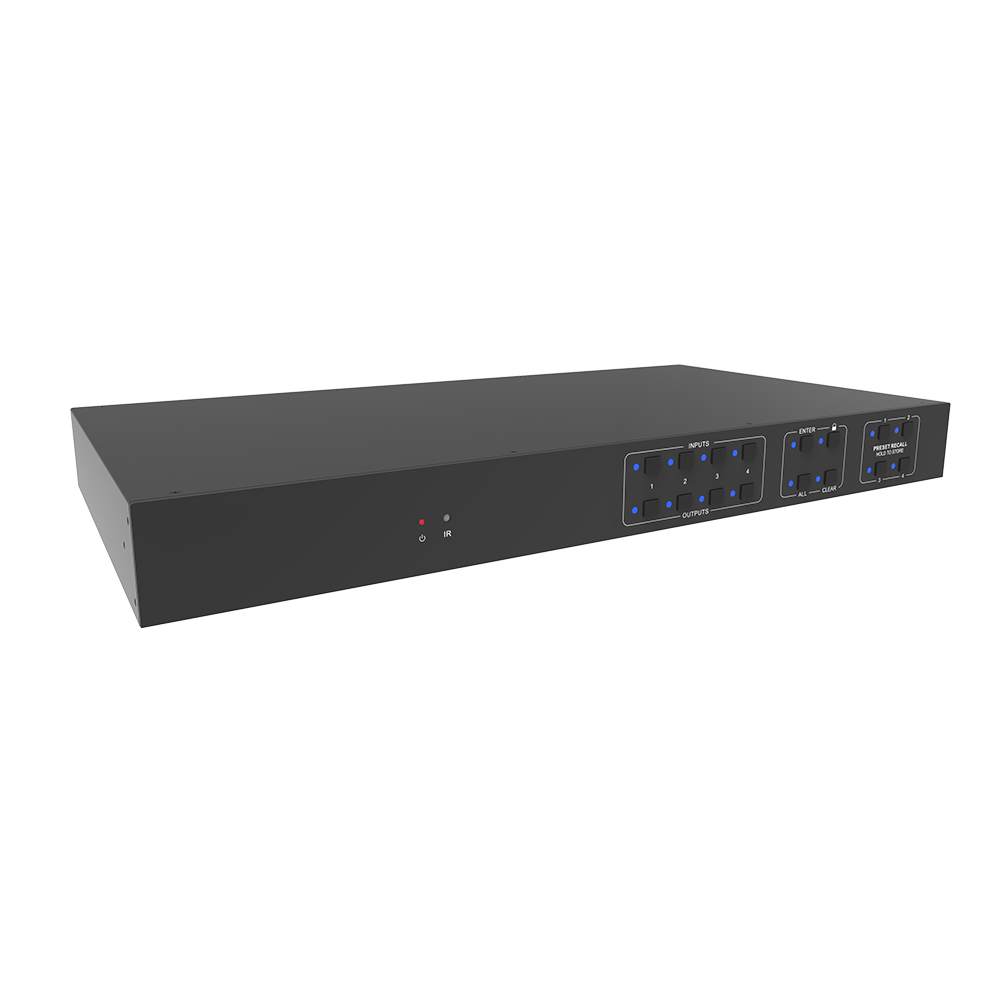

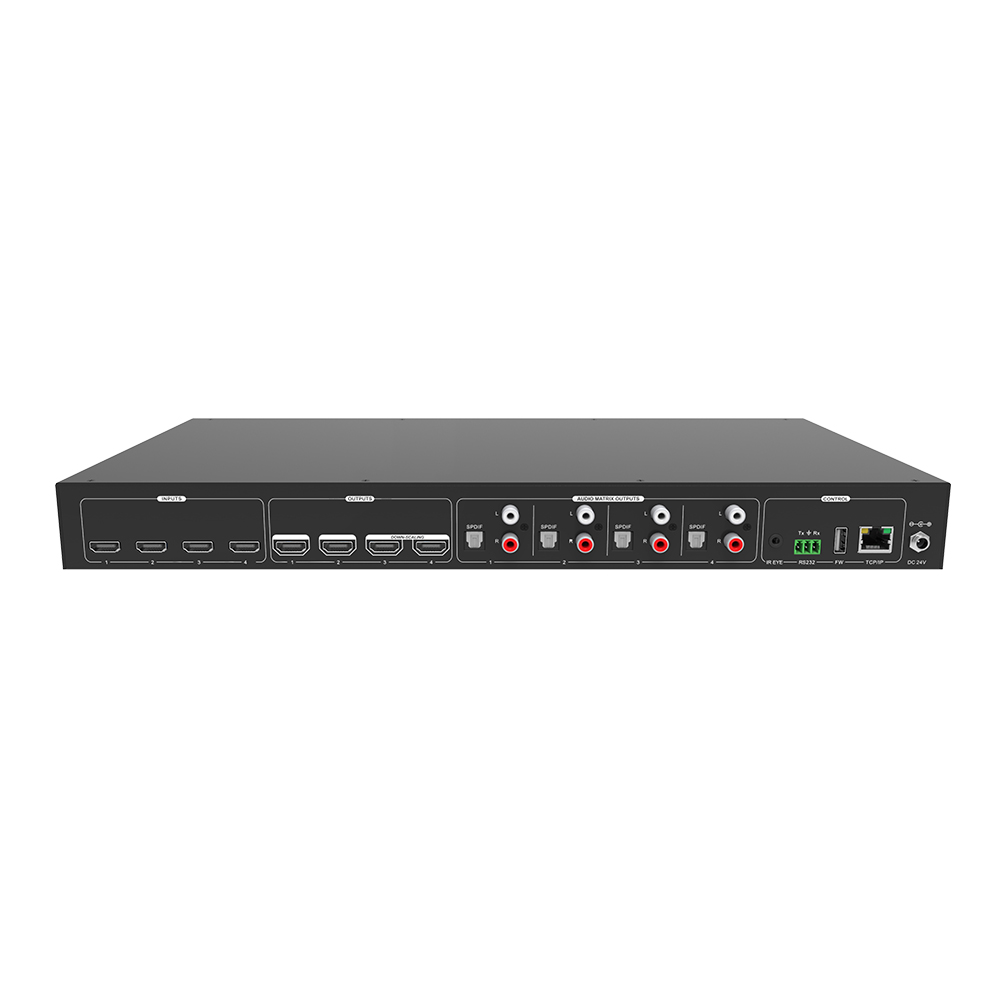

The MUH44-H2 is a
professional 4x4 HDMI 18Gbps Matrix Switcher with Audio Matrix. It includes 4
HDMI inputs, 4 HDMI outputs and the last two outputs with down-scaling
function, which is designed for switching two HDMI 18Gbps and HDCP2.3 compliant
signals. It also features 4 SPDIF and 4 analog audio outputs for audio
matrix.The matrix switcher features comprehensive EDID management and advanced
HDCP handing to ensure maximum functionality with a wide range of video
sources.The matrix switcher not only supports bi-directional IR, RS232
extension but also has IR, RS232, and TCP/IP control options.
● 4x4 HDMI 18Gbps Matrix Switcher.
● Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.
● Audio Matrix, audio out can de-embedded from arbitrary input or output.
● Individual volume adjustment on each L+R output.
● Supports 4K to 1080p down-scaling up to 2 outputs.
● HDMI out provides 2.5W to power Active Optical Cable (AoC).
● HDMI Output support up to 5V500mA for AoC cable
● Controllable by front panel, IR, RS232 and TCP/IP.
