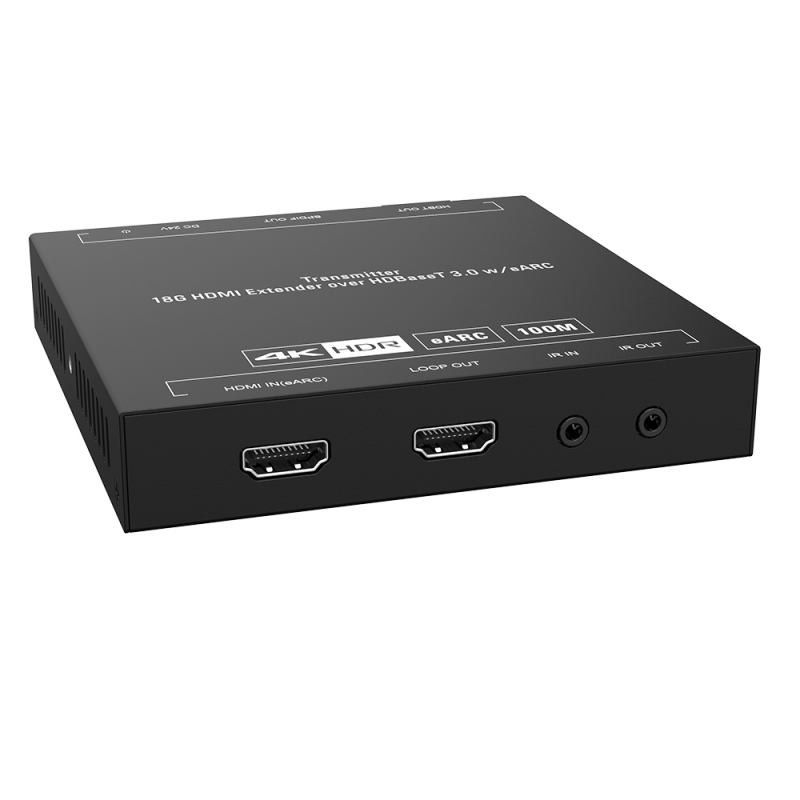

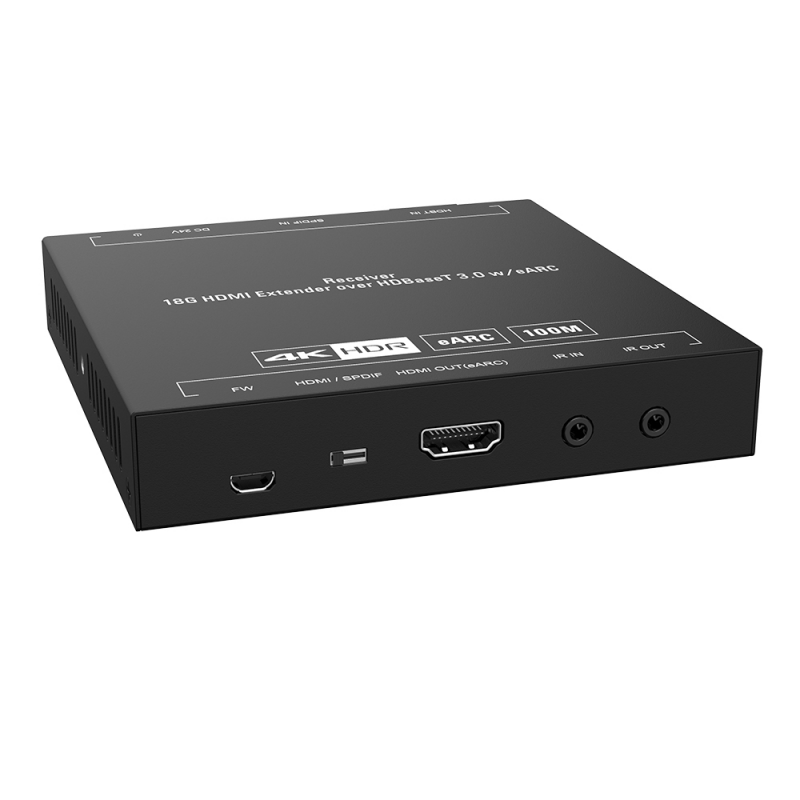

The TPUH660 is an HDBT3.0 eARC Extender, which consists of
a transmitter and a receiver. It can extend 4K or 1080p video to
distance up to 328 feet (100 meters) over a single CAT6A cable without
compression. It supports eARC. It also supports bi-directional IR pass-through
control. 24V PoC feature allows the transmitter and the receiver can be powered
from each other and only one power adapter is needed in system.
● 18Gbps high bandwidth, HDMI 18G.
● HDMI video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
● Supports HDCP bypass and HDCP 2.2 compliant.
● HDBaseT 3.0 solution which supports extending signal without compression.
● Extends 4K or 1080p video signals to distances up to 328 feet (100 meters) over a single CAT6A cable.
● Bi-directional IR pass-through control.
● Supports bi-directional 24V PoC.
● Supports eARC (Enhanced Audio Return Channel).
● Provides HDMI loop out on transmitter.
