The SCU61E allows
selection of six different sources (three HDMI inputs, one USB-C input, one
DisplayPort input and one VGA input), and will switch the selected video to
HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P,
and 3D. In addition, there is the smart built-in EDID setting can be selected

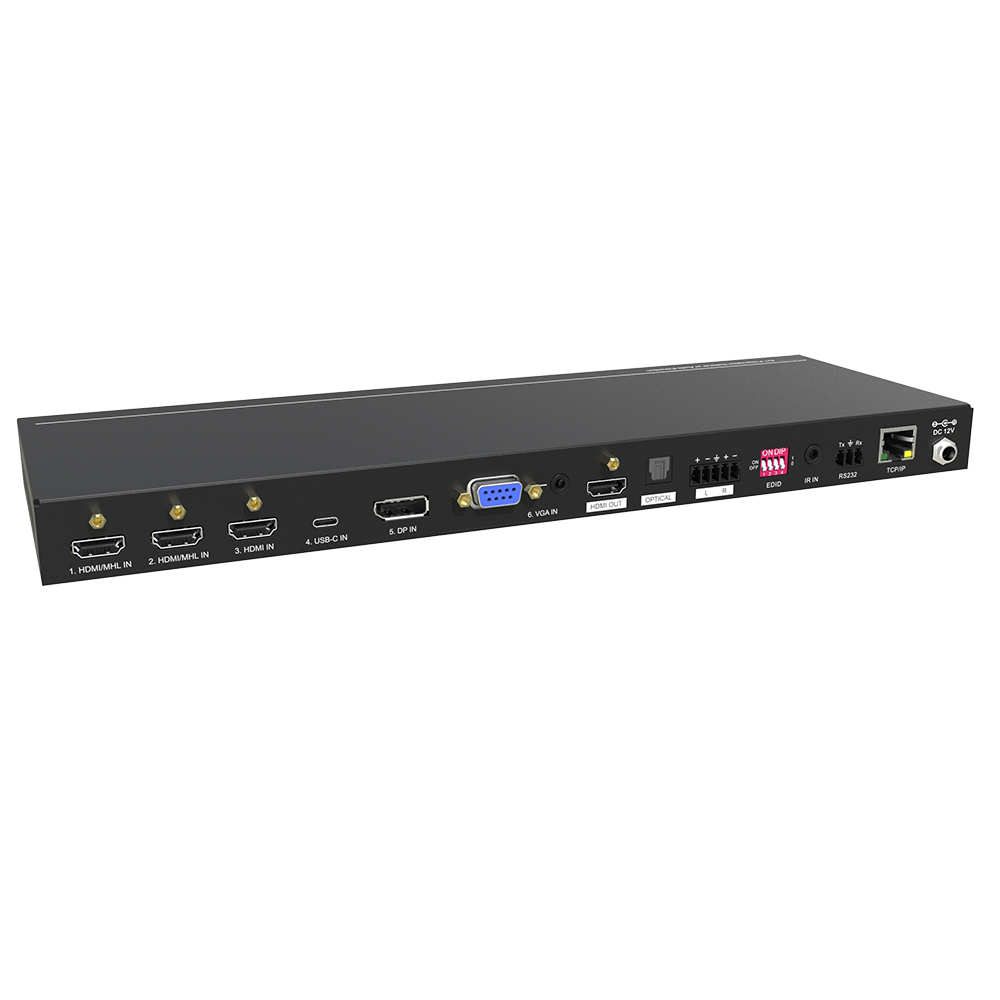

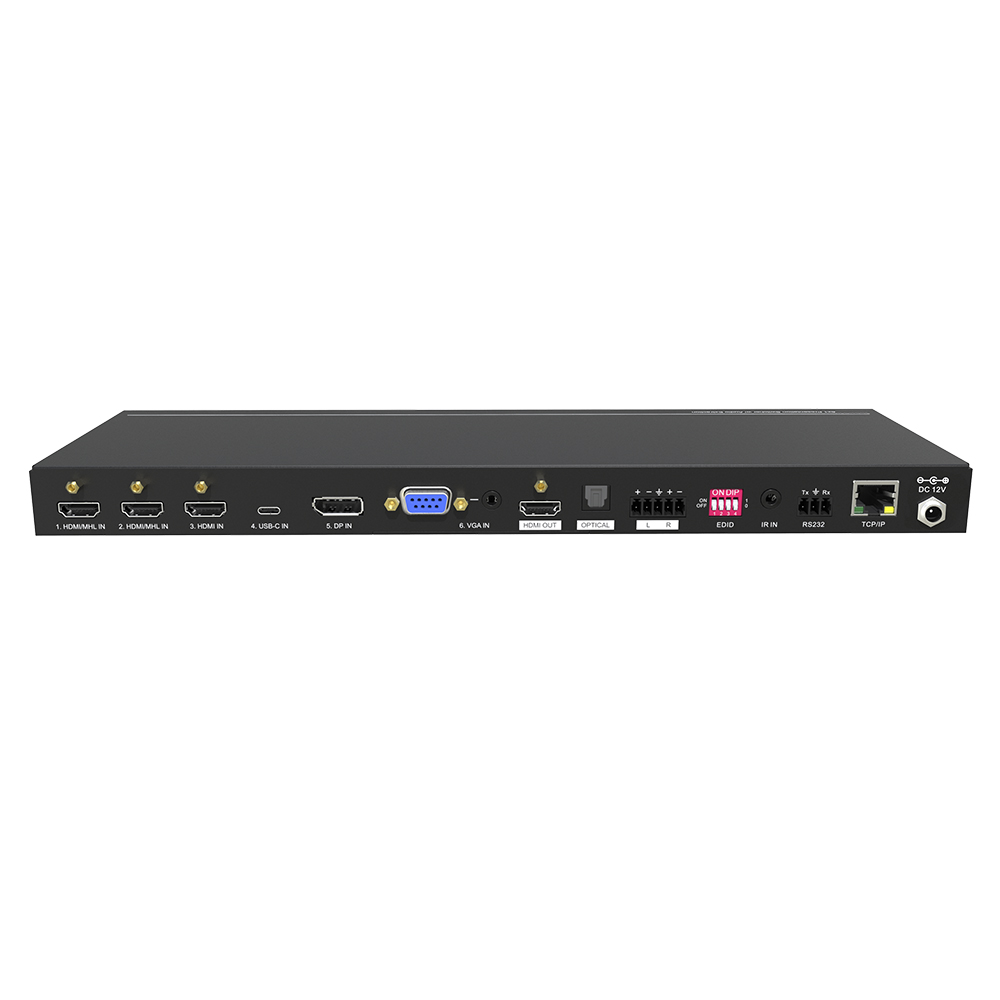

by the 4-pin DIP switch on the rear panel.
● Supports HDMI 18Gbps and video resolution up to 4K@60Hz 4:4:4 8bit, 1080P, and 3D.
● 18Gbps high bandwidth and supports HDR 10.
● HDCP 2.3 compliant.
● Supports automatic switching.
● CEC control for display volume and ON/OFF.
● Controllable via RS232 and IR.

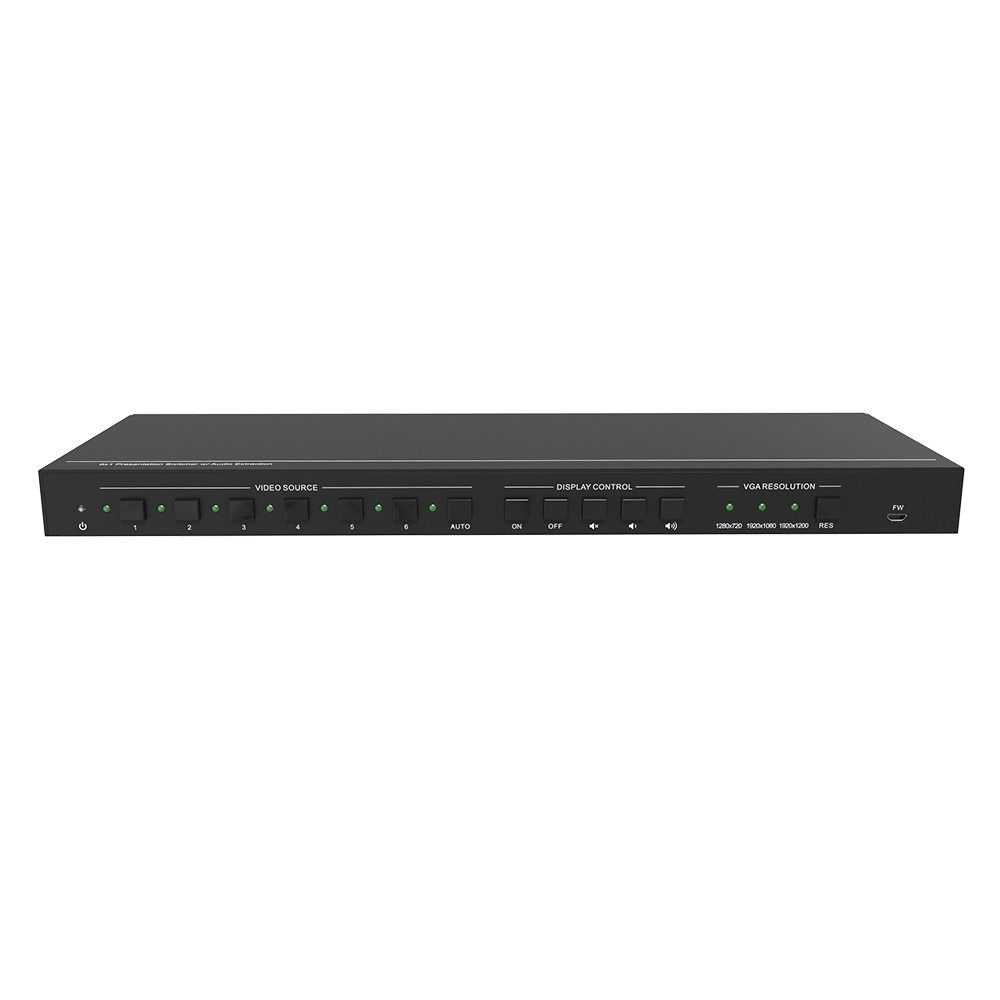

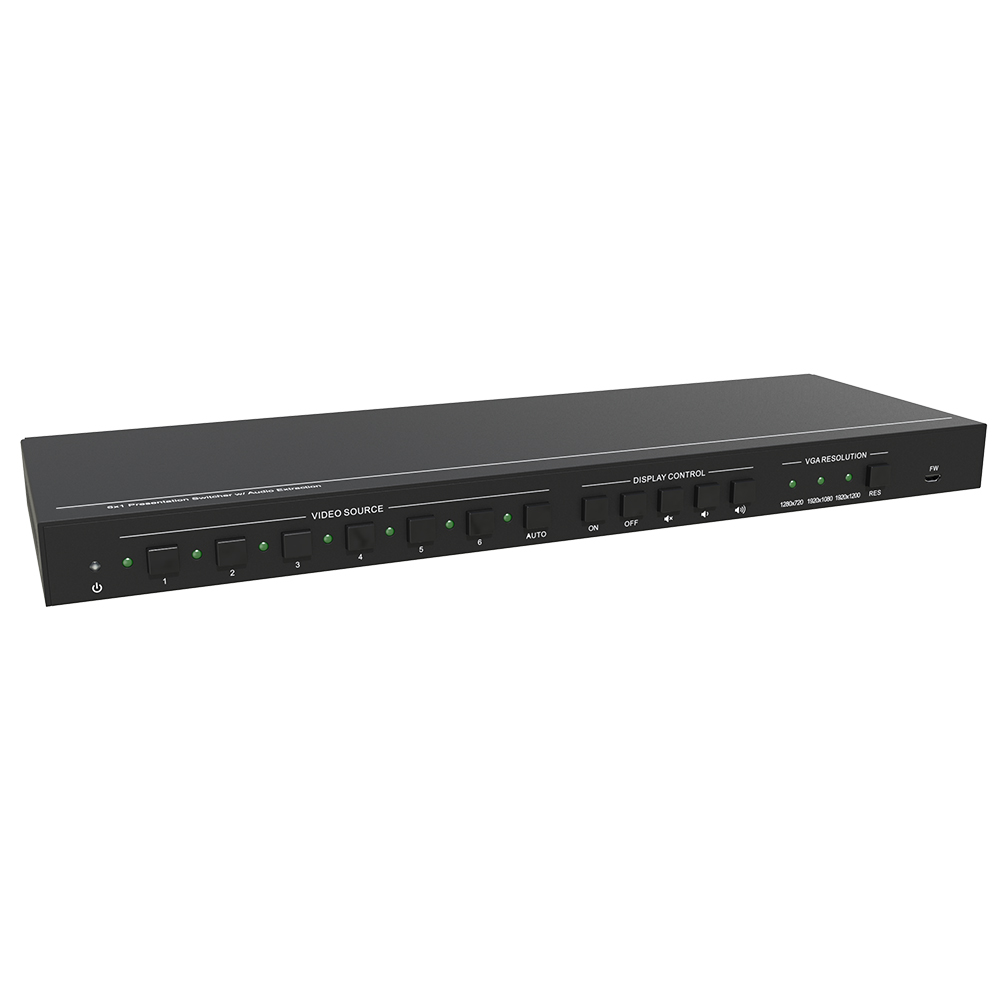

● VGA resolution is selectable on the front panel.
● Optical and balanced analog audio for audio de-embedding.
● Smart EDID management for various application and customized setting.
