TPUH650

The TPUH650 is an USB-C KVM Extender Kit that allows one USB channel to be transmitted over distances of up to 328ft(100m) at 4K@60Hz/1080p@60Hz via CATx cable.

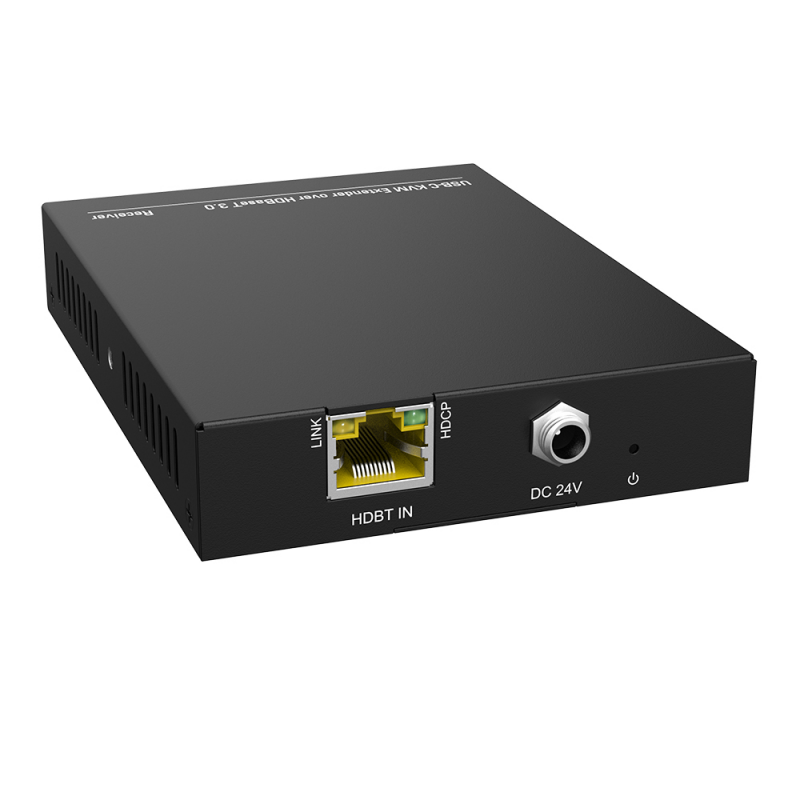

The USB-C KVM Extender Kit includes one transmitter and one receiver. The transmitter features one USB-C input and one HDBT output. For the USB-C input, it provides an AV ideal interface for connecting to the Macbook or other device with SlimPort output. The receiver features one HDMI output, one HDBT input and 4 USB 2.0 ports for connecting with KVM device such as camera, keyboard and mouse.

Features

●  Supports HDMI 18G, 4K@60Hz 4:4:4, HDCP 2.2 compliant.

●  USB-C input supports 4K@60Hz 4:4:4.

●  Supports to transmit 4K/1080p signal up to 328ft(100m).

●  Supports bi-direction 24V PoC power supply.

●  4 USB 2.0 ports for connecting with KVM device.

● Micro-USB for firmware upgrade.

A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
