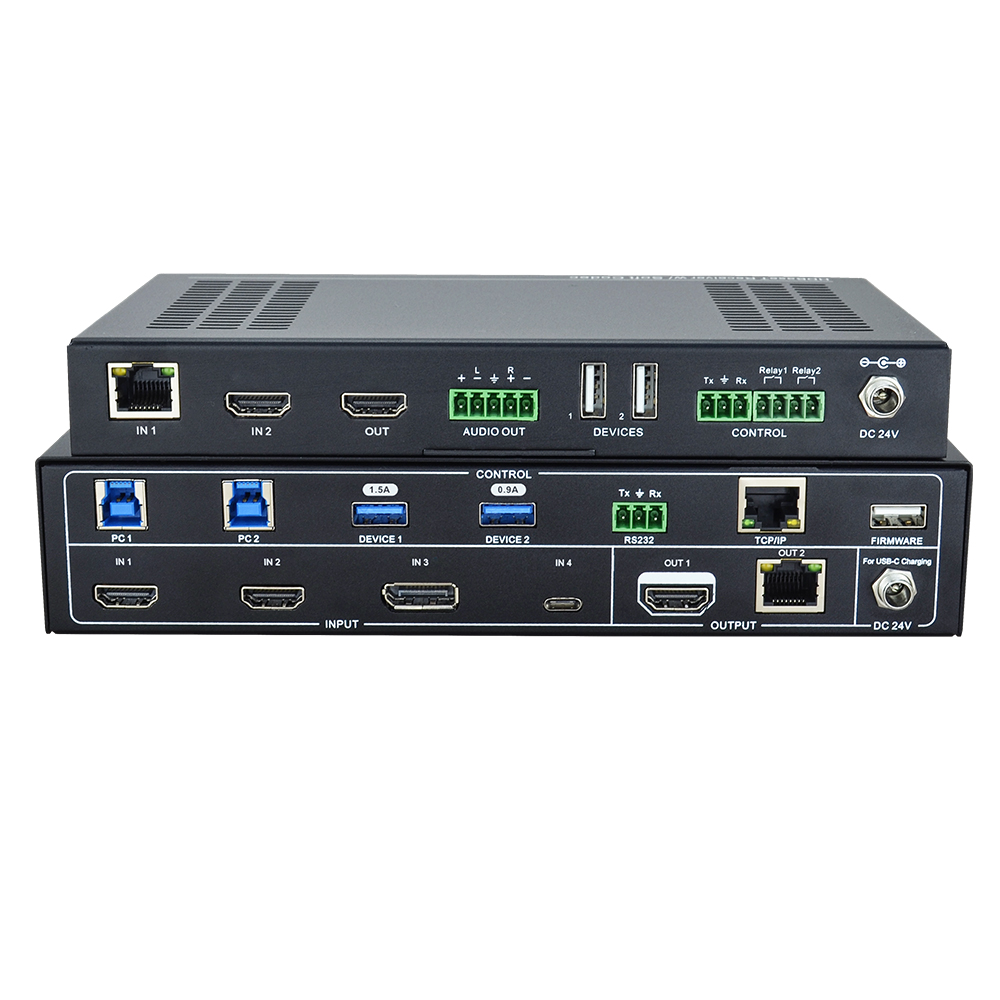

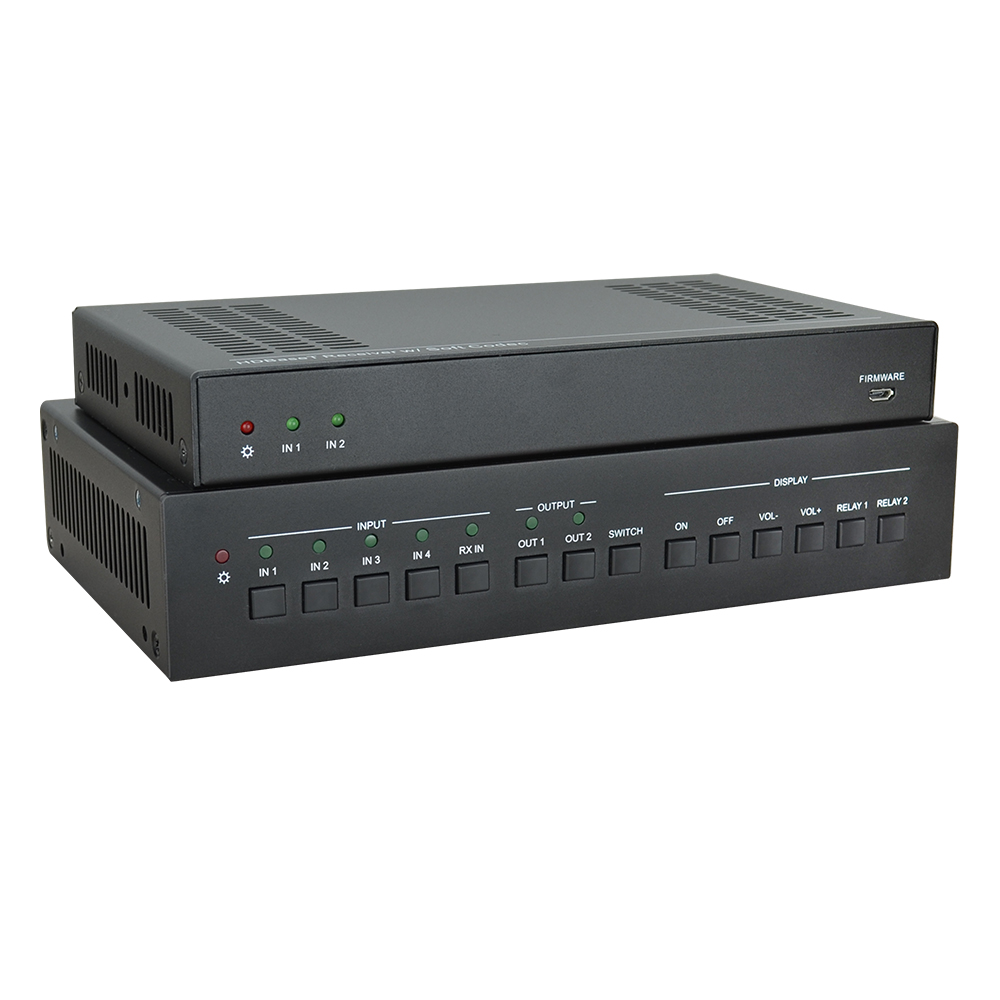

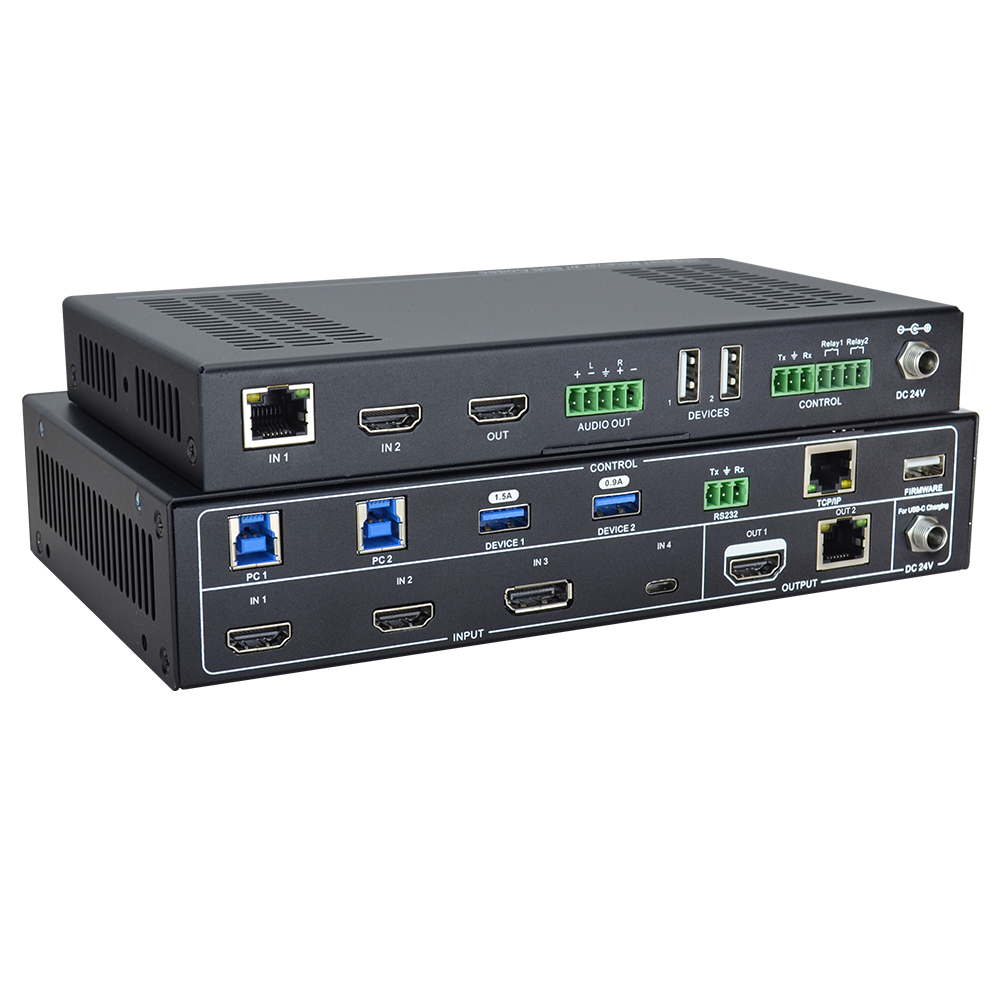

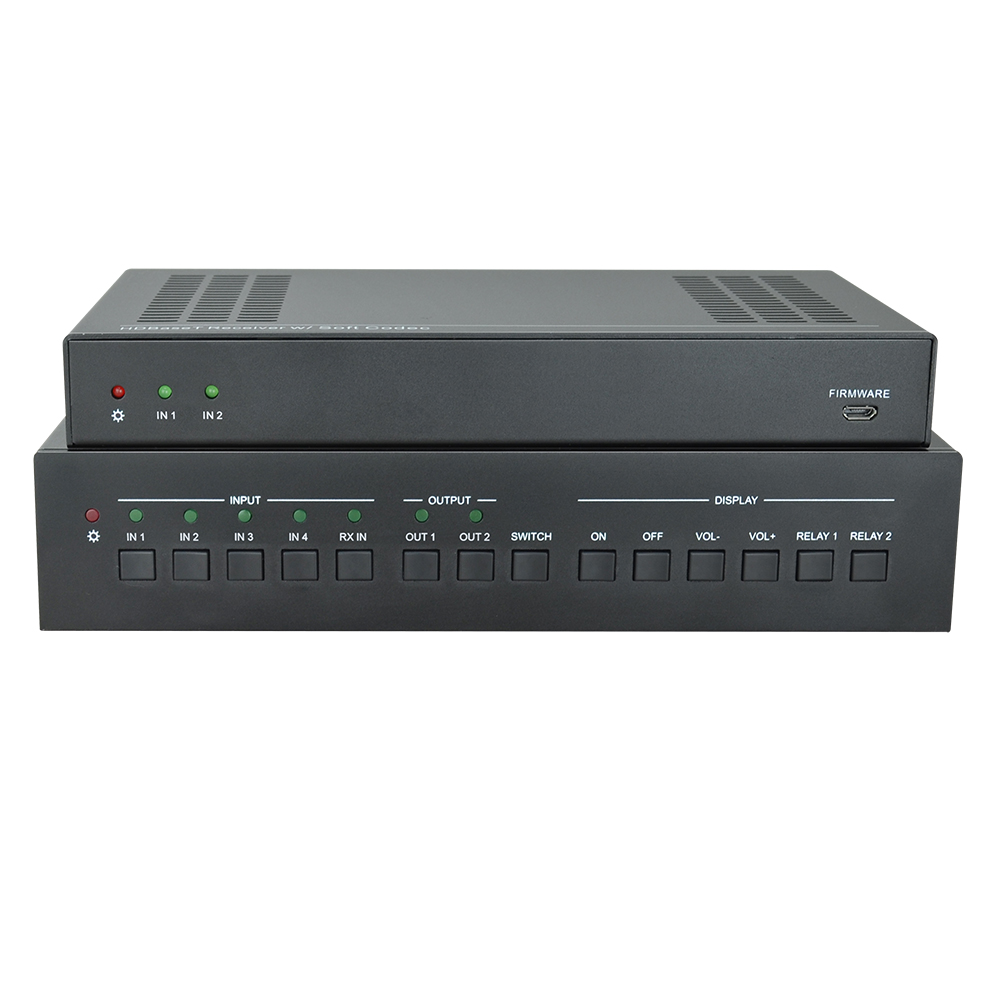

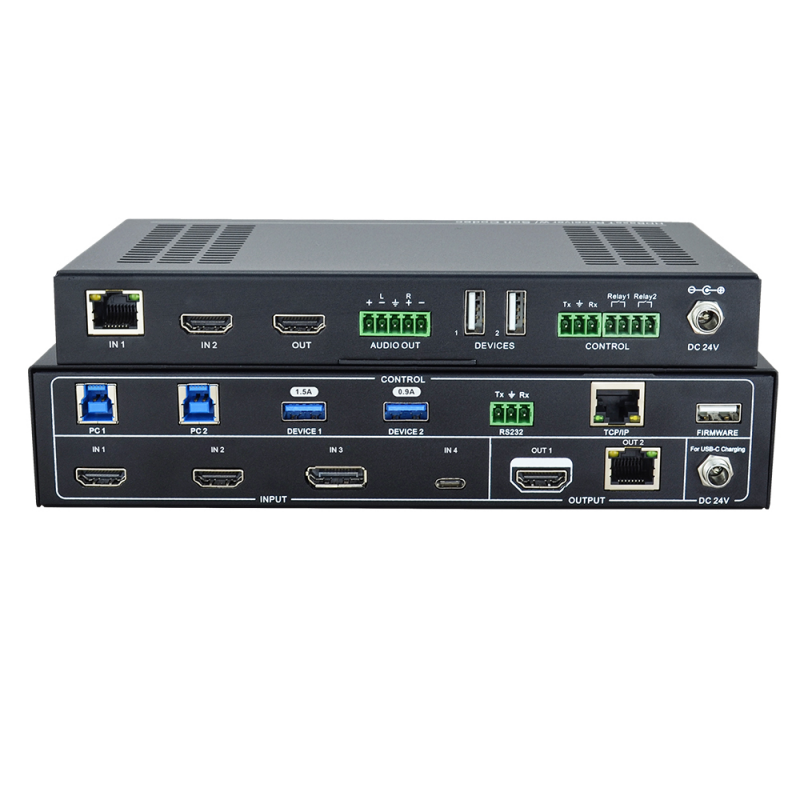

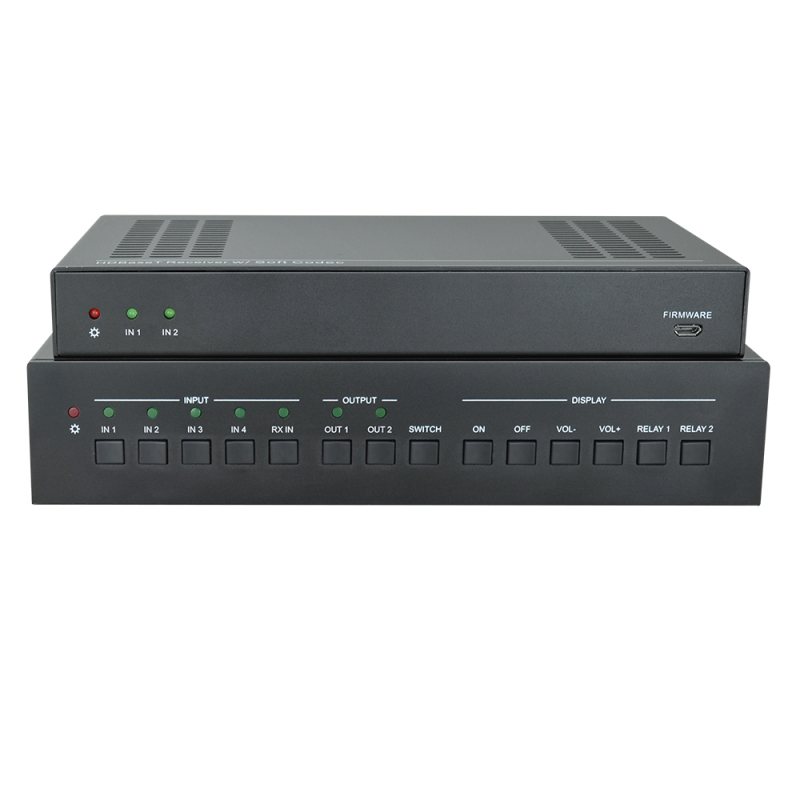

SCU42T-CODEC

The SCU42T-CODEC is a conferencing system codec kit supporting resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2. It includesTransmitterand Receiver, providing AV switching, audio de-embedded, and USB extension, plus system control. All video, audio, control, USB and Ethernet signals can be transmitted over a single CATx cable up to 70m.

The kit provides four video inputs such as HDMI, DP and USB-C. To simplify meeting room device management, the kit offers USB ports for devices extension, two on the transmitter and two on the receiver. It supports a variety of USB 2.0 devices like camera, microphone and keyboard as well as other devices.

It also allows users to control system functionality via WEB GUI, and RS232. Additionally, users can control the rise and fall of projector screen over relay port.

This is an ideal solution for meeting spaces using PC-based conferencing system codecs such as Skype@, WebEx@and GoToMeeting@, etc.

Features

●  4K Presentation Switcher with Soft Codec & Matrix Outputs.

●  Teleconference system – transmitter connect to laptop and USB MIC or speaker, while receiver connect to display and USB camera.

●  Automatic display control.

●  HDMI 2.0b, 4K/60Hz/4:4:4 8bit, HDR 10, HDCP 2.2.

●  Transmits 4K to 40m and 1080P to 70m.

●  Audio de-embedding on the receiver.

●  EDID management for individual input.

●  PoC technology allows Transmitter HDBT OUT port to be powered by Receiver.

●  Receiver HDBT IN port supports two ways 24V PoC technology.

●  RS232, CEC, Relay and TCP/IP control.
