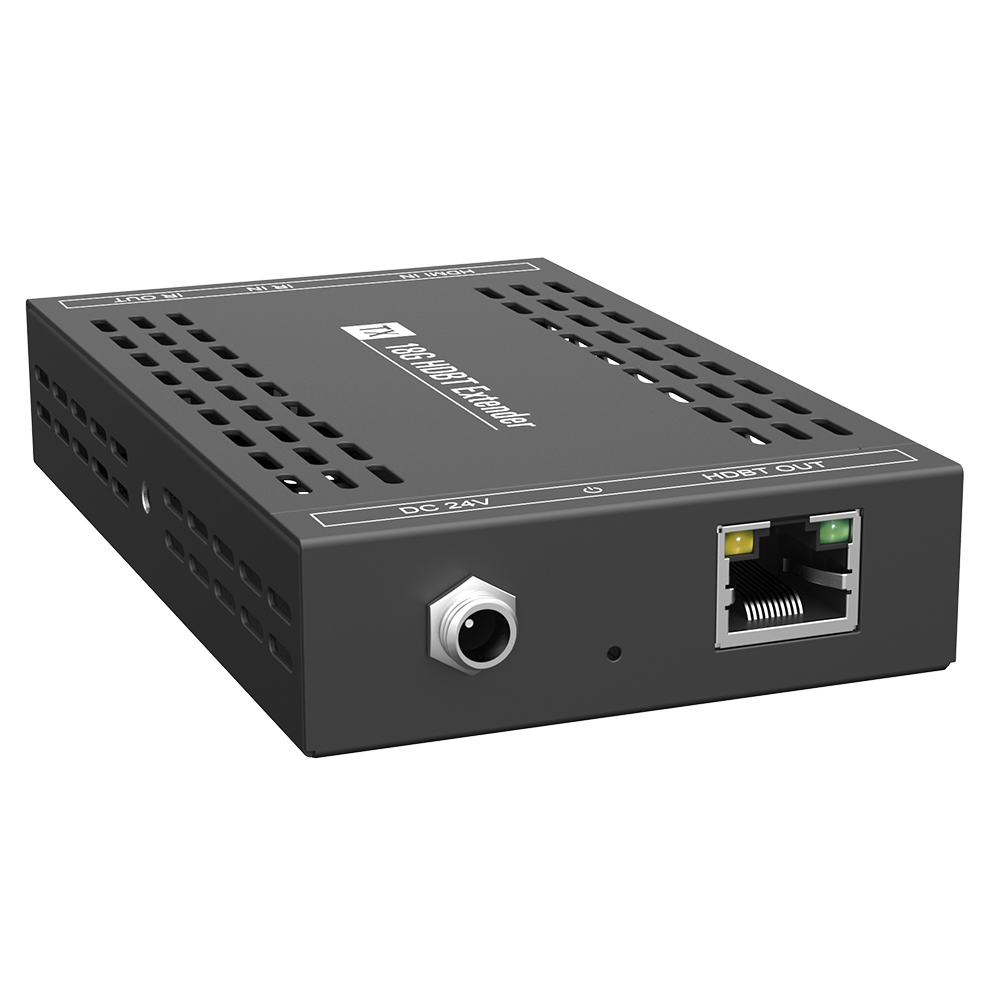

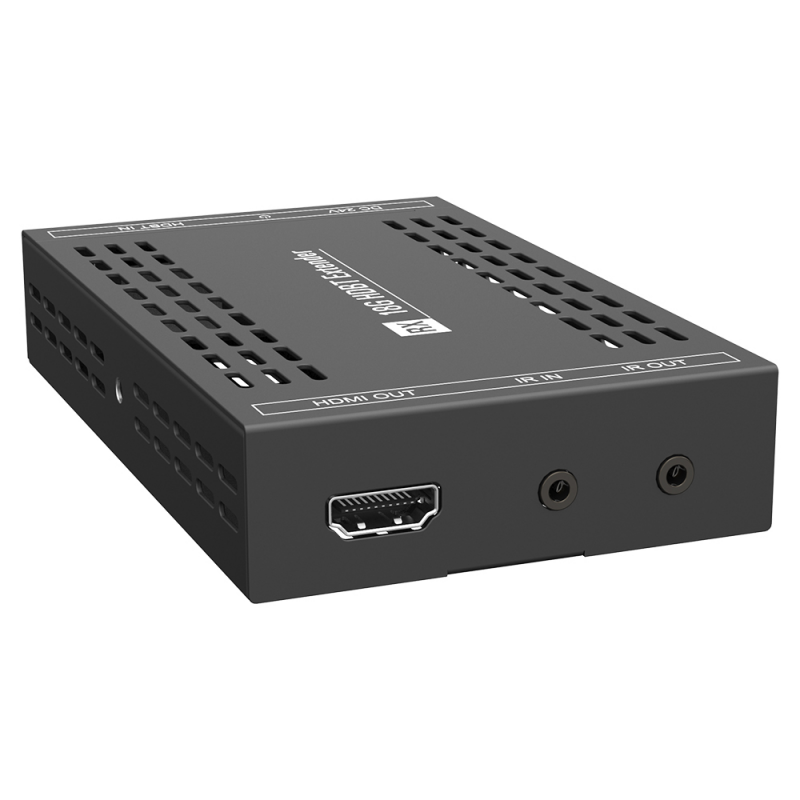

TPUH-FYI is an HDBaseT extender kit which consists of a transmitter (Tx) and a receiver (Rx). It allows to extend a 4K@60Hz 4:4:4 HDMI signal to distance up to 131ft/40m and 1080P@60Hz up to 230ft/70m over a single CATx Ethernet cable. It supports bi-directional 24V Power over Cable (PoC), which simplifies the wiring to allow only a single AC power adapter usage. It supports bi-directional IR pass-through extension, allowing for control of local video source device or the remote display. Moreover, it supports EDID and CEC pass-through.
l HDMI V2.0 standard and HDCP 2.2 compliant.
l Supports video resolution up to 4Kx2K@60Hz 4:4:4.
l Transmission distance is up to 131ft/40m for 4Kx2K, and 230ft/70m for 1080P.
l Supports bi-directional IR pass-through for long-distance control.
l Supports bi-directional 24V PoC.
l Supports EDID and CEC pass-through.
