TPUH-PSU12-UL

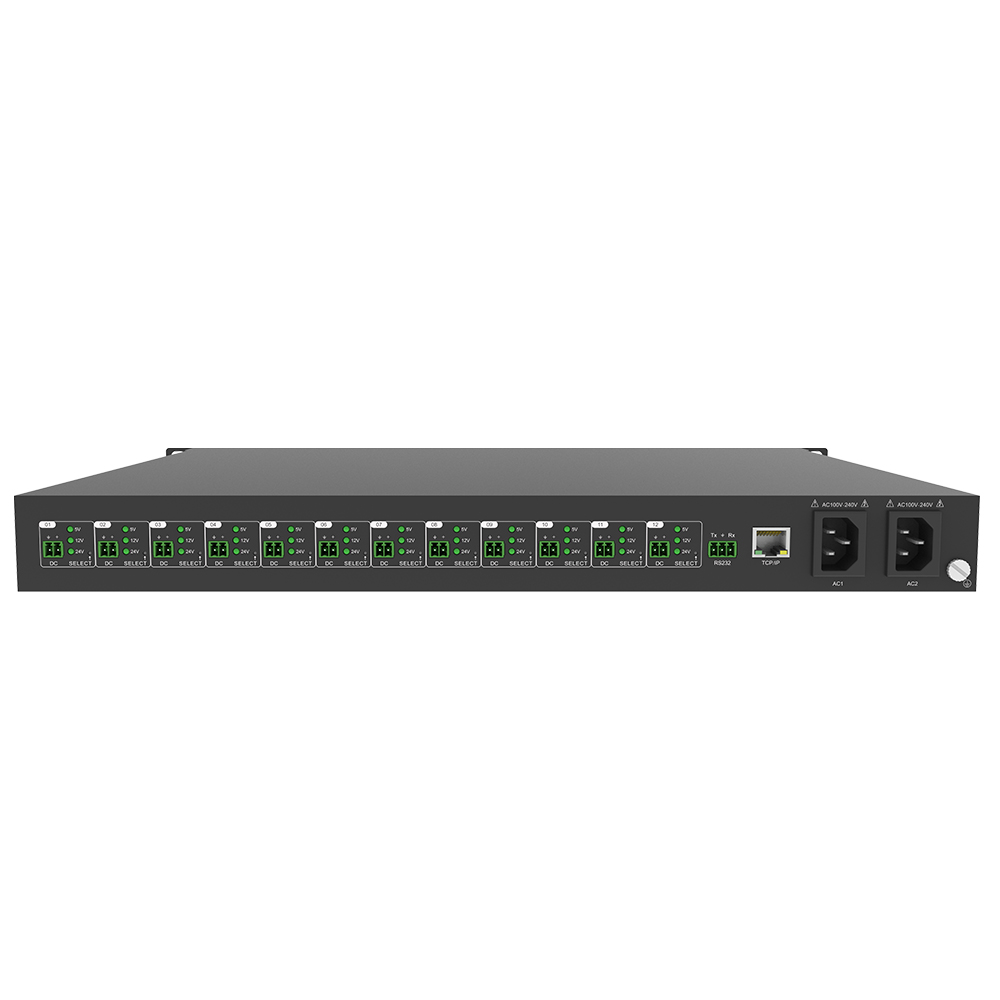

The TPUH-PSU12-UL is an integrated power supply unit with twelve 2-pin captive screw connector outputs, each DC output port has selectable 5V/12V/24V.

Features

● UL certificated.

● 12 DC Captive Screw Power Ports.

● Each port are switchable for 5v, 12v or 24v output.

● Individual control of each port via dial, TCP/IP, GUI or RS232.

● Built-in redundant power supply with auto switching.

● Front panel status LEDs.

● Compact 1RU.
