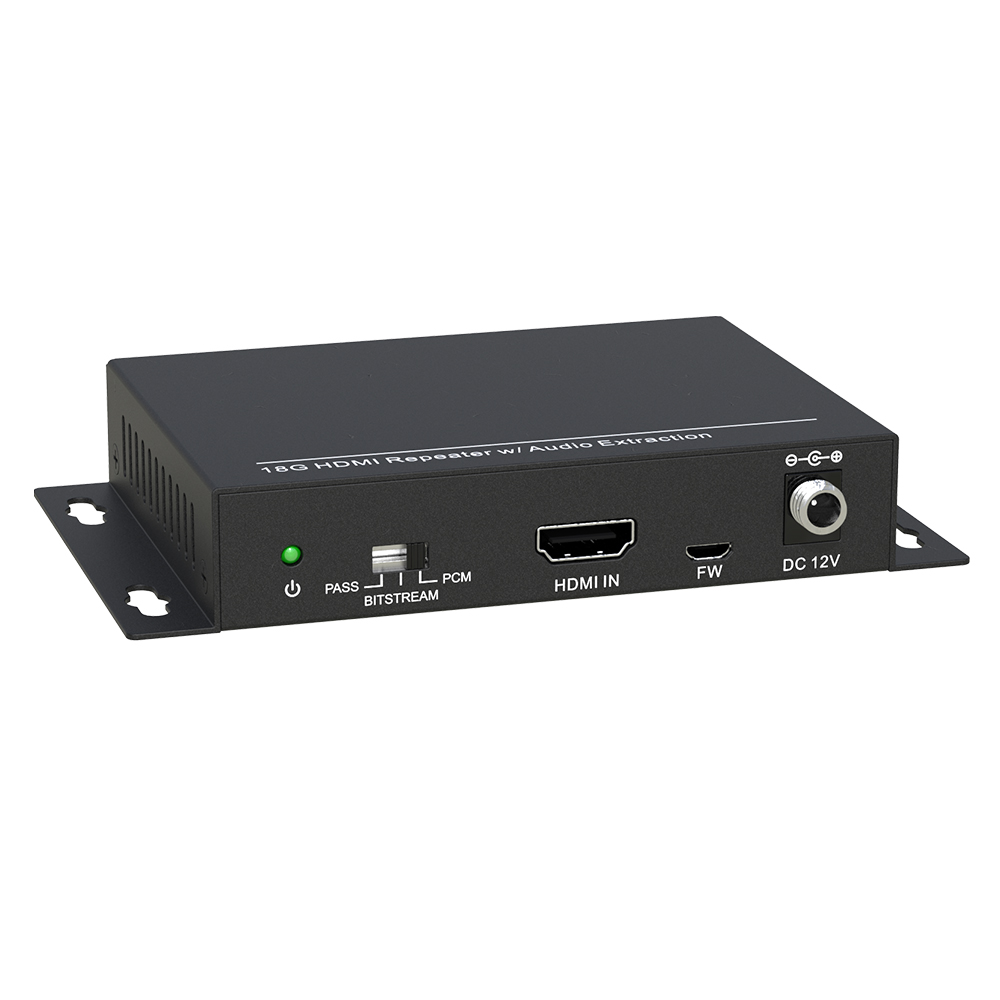

The CE-CVAD is a
small-size HDMI 18Gbps high bandwidth audio de-embedder with 1 HDMI input, 1
HDMI output, and three kinds of audio outputs. It is designed to extract audio
from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial
digital audio output ports. It supports 4K@60Hz 4:4:4 HDR, EDID & CEC
pass-through, and the transmission rate is up to 18Gbps.
● Supports HDMI 4K@60Hz/4:4:4 HDR, EDID & CEC pass through.
● Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.
● Three EDID modes for audio selection: PASS, BITSTREAM, and PCM.
● HDMI input supports HDCP2.2, and the output supports HDCP1.4.
● Coax digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
