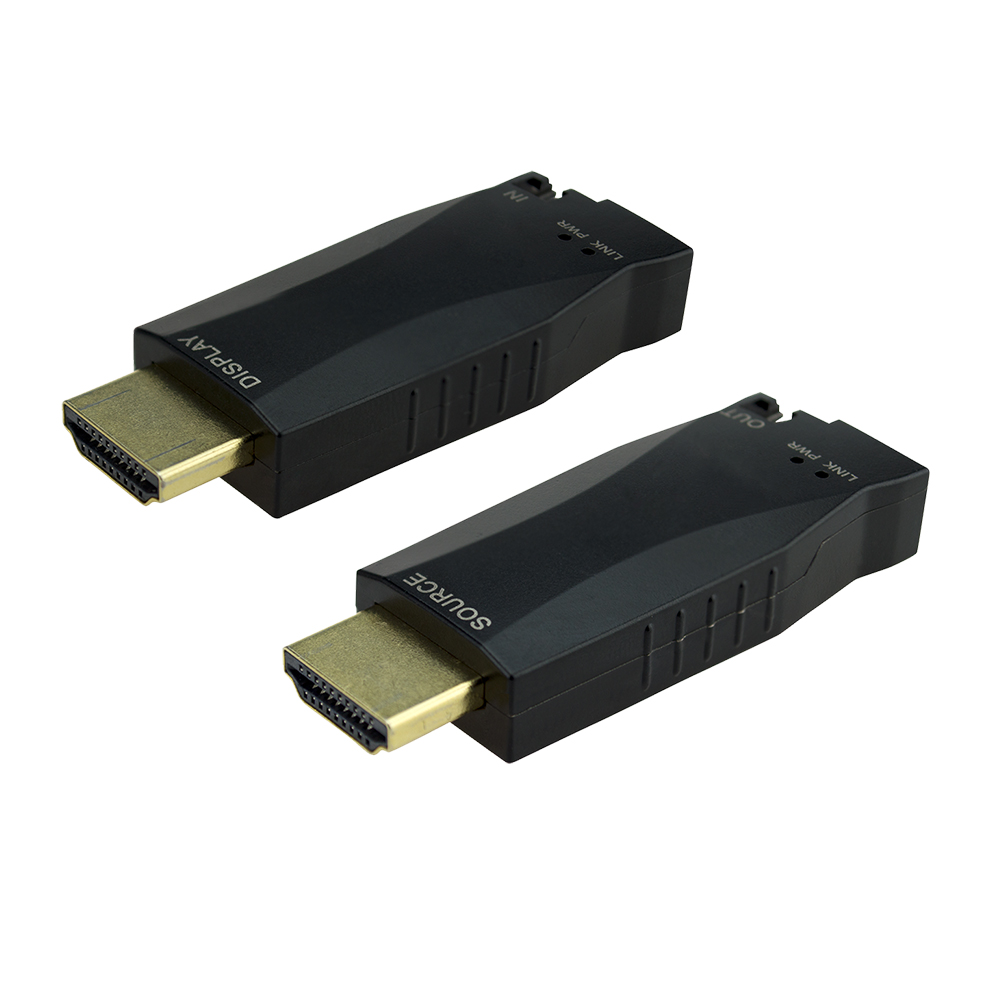

FOUH303 is a mini 4K
HDMI optical fiber extender, which contains a transmitter module and a receiver
module. Compatible with HDMI 4K, it transmits high-definition HDMI (max
3840x2160@30Hz) signal up to 300m / 400m over qualified OM3 multimode / single
mode fiber-optic cable.
● 4K up to 300m/400m over OM3 multimode / single mode fiber-optic cable
● Bandwidth is 10.2Gbps.
● Supports 4Kx2K &1080P 3D.
● HDCP 1.4 compliant.
● Neat shape for easy installation.
The TPUH660 is an HDBT3.0 eARC Extender, which consists of
a transmitter and a receiver. It can extend 4K or 1080p video to
distance up to 328 feet (100 meters) over a single CAT6A cable without
compression. It supports eARC. It also supports bi-directional IR pass-through
control. 24V PoC feature allows the transmitter and the receiver can be powered
from each other and only one power adapter is needed in system.
The TPUH640 is an18G
HDMI Extender, which consists of a transmitter and a receiver. It can extend 4K
or 1080p video to distance up to 328 feet (100 meters) over a single CATx
cable. It supports audio de-embedding and ARC. It also supports bi-directional
IR, USB and RS232 pass-through control and Ethernet extension. 24V PoC feature
allows the transmitter and the receiver can be powered from each other and only
one power adapter is needed in system.
CE-EX20B is an HDMI
18Gbps high bandwidth booster designed to extend 4K×2K@60Hz 4:4:4 signal up to
65ft/20m, and 4Kx2K@30Hz signal up to 115ft/35m over HDMI 2.0 cables, being
powered by HDMI source, and the HDMI cables should support 18Gbps.
FOUH303 is a mini 4K
HDMI optical fiber extender, which contains a transmitter module and a receiver
module. Compatible with HDMI 4K, it transmits high-definition HDMI (max
3840x2160@30Hz) signal up to 300m / 400m over qualified OM3 multimode / single
mode fiber-optic cable.
The FOUH309 is an HDMI 18G Fiber Optical Extender which is designed to extend 4K@60HZ 4:4:4 12 bits HDCP encrypted HDMI signal up to 300m via single-mode or multi-mode(OM3/OM4) fiber or non-HDCP encrypted signal up to 2km via single-mode fiber.
The extender also allows signal across the fiber
cable for bi-directional IR and RS232 control.
The
NPG-EX10KVM is a cost-effective point-to-point HDMI extender set for HDMI and
USB signals; this kit supports 4K/UHD video@30 Hz, as well as HDMI data rates
up to 10.2Gbps, HDCP 2.2 compliant; It provides HDMI transmission up to 393
feet (120m) for 1080p or 4K@30Hz over single CATx cable. It supports video
resolution down-scaling, the 4K input can be automatically downscale to 1080p
output for compatibility with 1080p display.
The NPG-EX30KVM is a
cost-effective point-to-point HDMI extender set for HDMI and USB signals; this
kit supports 4K/UHD video@60 Hz, HDCP 2.2 compliant; It provides HDMI transmission
up to 70m for 1080p or 4K@60Hz over single CAT5e cable. It supports video
resolution down-scaling, the 4K input can be automatically downscale to 1080p
output for compatibility with 1080p display.
The CE-EX70 is a professional HDMI Extender that consist of a transmitter and a receiver. It supports 1080p@60Hz video signals up to 70m including embedded multi-channel audio and HDCP 1.4.
Built-in EDID make this product compatible with most display and source device, to ensure HDMI transmission.
Advanced power design (PoC) allows this product to be powered at Transmitter, and only one power supply is required. In addition, the CE-EX70 send/receive IR signals each other over the same CATx cable with IR pass through.
The NPG-EX80 is a
cost-effective point-to-point extender set for HDMI V1.4 and IR signals. The
extender supports 4K@30Hz with 4:4:4 Chroma sampling along with HDMI data rates
up to 10.2Gbps and HDCP 1.4 compliant. The CE-EX80 provides HDMI transmission
up to 328 feet (100 meters) for 4K@30Hz 4:4:4 or 1080p, over single CAT5e/6
cable. The extender supports video resolution down-scaling allowing the 4K
input to be automatically downscale to 1080p output for compatibility with
1080p display.
The NPG-EX60-H2 is a
cost-effective point-to-point extender set for HDMI 18Gbps and IR signals; this
kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI
data rates up to 18Gbps, HDCP 2.2 compliant; It provides HDMI transmission up
to 230 feet (70 meters) for 4K@60Hz 4:4: 4 or 1080p, over single CAT5e/6 cable.
It supports video resolution down-scaling, the 4K input can be automatically
downscale to 1080p output for compatibility with 1080p display.
The NPG-EX71-H2 is a
point-to-point HDMI extender set for HDMI 18Gbps and IR signals; this kit
supports 4K/UHD video @ 60Hz with 4:4:4 Chroma sampling, as well as HDMI data
rates up to 18Gbps and HDCP 2.2 compliant. The NPG-71-H2 provides HDMI
transmission up to 230 feet (70 meters) for 4K@60Hz 4:4: 4, or 262 feet (80
meters) for 1080p over single CAT5e/6 cable. It supports bi-directional IR, RS232
and 12V PoC, and automatic video resolution down-scaling.
TPHD-BYE is an
HDBaseT extender for HDMI and bi-directional IR signals, which contains a
transmitter TPHD-BYE-T and a receiver TPHD-BYE-R. It transmits 4K signal up to
131ft/40m, or 1080P signal up to 230ft/70m over a single Cat5e/Cat6 cable. The
extender set supports PoC function, which can save a power supply at the receiver
end.
