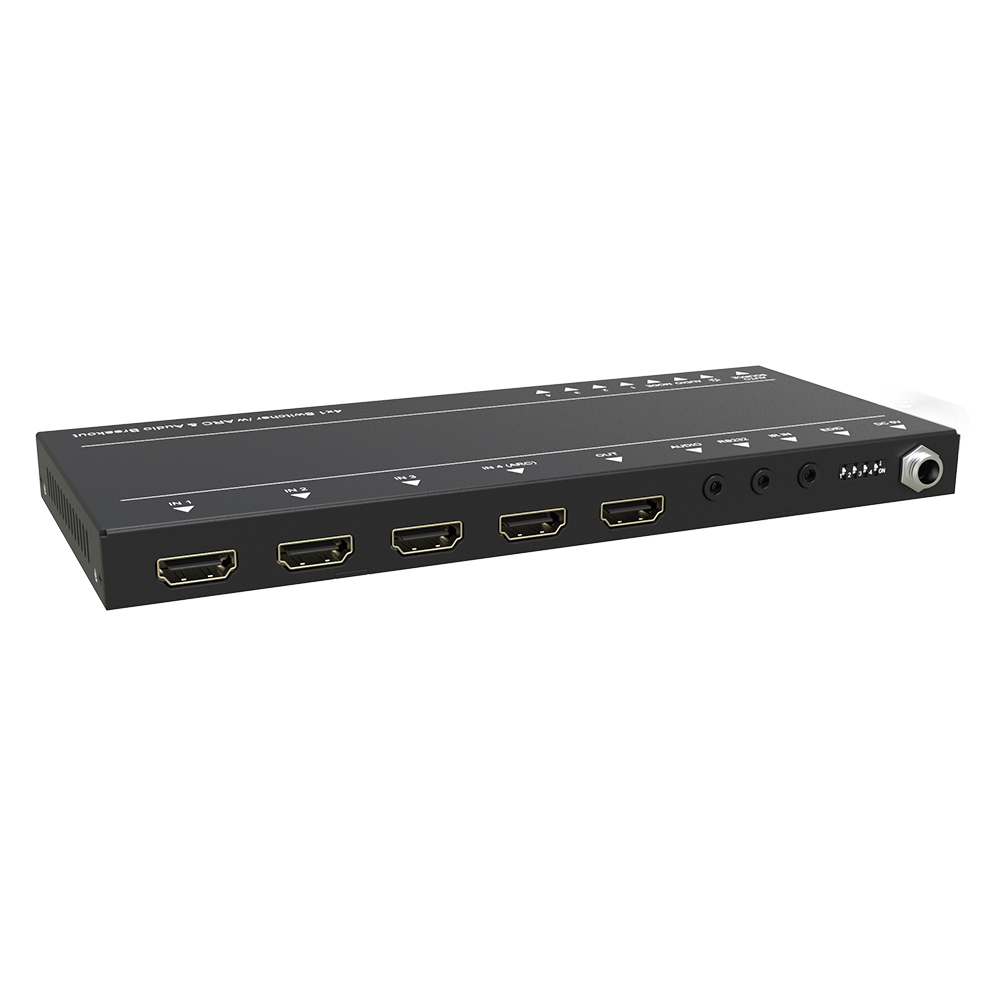

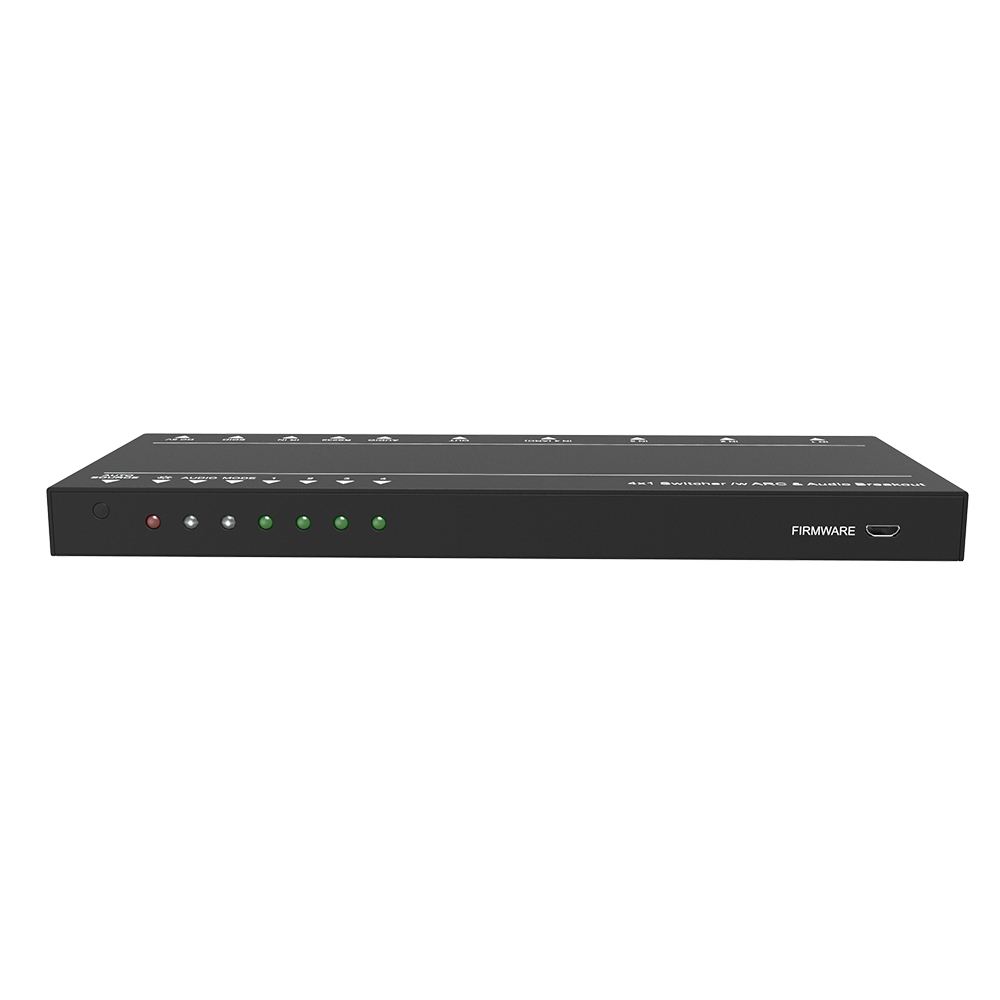

The WUH4ARC-H2 is a
HDMI 18Gbps high bandwidth 4x1 switcher with audio de-embedded, support ARC and
EDID management.
● Supports HDMI 18Gbps, 4K@60Hz 4:4:4, HDR.
● HDCP 2.2 compliant.
● Smart EDID management.
● Support ARC and audio de-embedded.
● Auto-sw.
● Ultra-slim design.
THe WUH3C-8K is an HDMI 8K 3x1 Switcher.
It is an auto switcher with three HDMI video inputs and one HDMI output.
It supports HDMI video resolution up to 8K@60Hz 4:2:0 HDR and Dolby Vision.
The switcher can be controlled via IR with the remote, or from the source button on the front panel of the switcher.
The WUH4ARC-8K is an auto switcher with four HDMI video inputs and one
HDMI output. This switcher supports HDMI video resolution up to 8K@60Hz 4:2:0
HDR+ and High Definition audio. Except passing EDID information from the display, there are multiple built-in EDID
settings to simplify an installation. The switcher will de-embed digital stereo
audio to provide an analog audio source for an existing audio system. The
switcher also supports enhanced audio return channel (eARC) for transmitting
audio back to HDMI input port from the connected display.
The WUH3C-H2 is an
HDMI 18Gbps 3x1 Switcher. It is an auto switcher with three HDMI video inputs
and one HDMI output. It supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4
HDR, Dolby Vision and multichannel audio.
The WUH4ARC-H2 is a
HDMI 18Gbps high bandwidth 4x1 switcher with audio de-embedded, support ARC and
EDID management.
The BYOD-E is an
HDMI 18G 3x1 Multi-format Presentation Switcher converting AV signal from HDMI,
Mini DP and USB-C inputs to HDMI output.
The BYOD is a
Multiformat Presentation Switcher converting AV signal from Lightning, USB-C,
MINI DP, DP, HDMI type-A and HDMI type-D to HDMI.
The SCU41E allows
selection of four different sources (three HDMI inputs and one DisplayPort
input), and will simultaneously switch the selected video to HDMI output. It
supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In
addition, there is the smart built-in EDID setting can be selected by the 4-pin
DIP switch on the rear panel.
The SCU61E allows
selection of six different sources (three HDMI inputs, one USB-C input, one
DisplayPort input and one VGA input), and will switch the selected video to
HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P,
and 3D. In addition, there is the smart built-in EDID setting can be selected
by the 4-pin DIP switch on the rear panel.
The SCU41-MV is
seamless 4K Multi-view scaler switcher designed to enable a true 4K display.
The switcher features four HDMI inputs and one HDMI output which allows you to
display four video sources on one display. It also provides a line input, 1 mix
input, 1 SPDIF output and 1 analog output for audio processing.
The SCU41TS offers
four HDMI, one display port and one USB-C inputs along with mirrored HDMI and
HDBaseT outputs. The HDBaseT output supports PoC and can be paired with a
compatible HDBaseT receiver to extend 4k@30Hz/1080P signal up to 40 meters
(131ft) / 70 meters (230ft) all over a single CATx cable.
The SCU42 consists
of four HDMI inputs, two HDMI matrix outputs and full HDMI 18Gbps support. The
product offers SPDIF and 3.5mm output for dual HDMI OUT audio extraction and
dual HDMI OUT ARC along with 4K to 1080p down-scaling functionality. The SCU42
features a wide range of control flexibility via Web, RS232, IR and smart EDID
management.
The SM42T is a 4x2 HDMI 18G
presentation switcher with an HDBaseT receiver. The switcher is designed to
switch HDMI or DP video signal to HDMI and HDBaseT output. It provides three
HDMI inputs, one DP input, one HDMI output and one HDBaseT output. The HDBaseT
output supports PoC and can connect compatible HDBaseT receiver up to a maximum
of 70 meters (230 feet).
The switcher supports
stereo and multichannel audio on the HDMI or DP input. In addition to the audio
embedded in the HDMI and HDBT output stream, which may be muted, the audio is
simultaneously de-embedded to an analog audio output.
