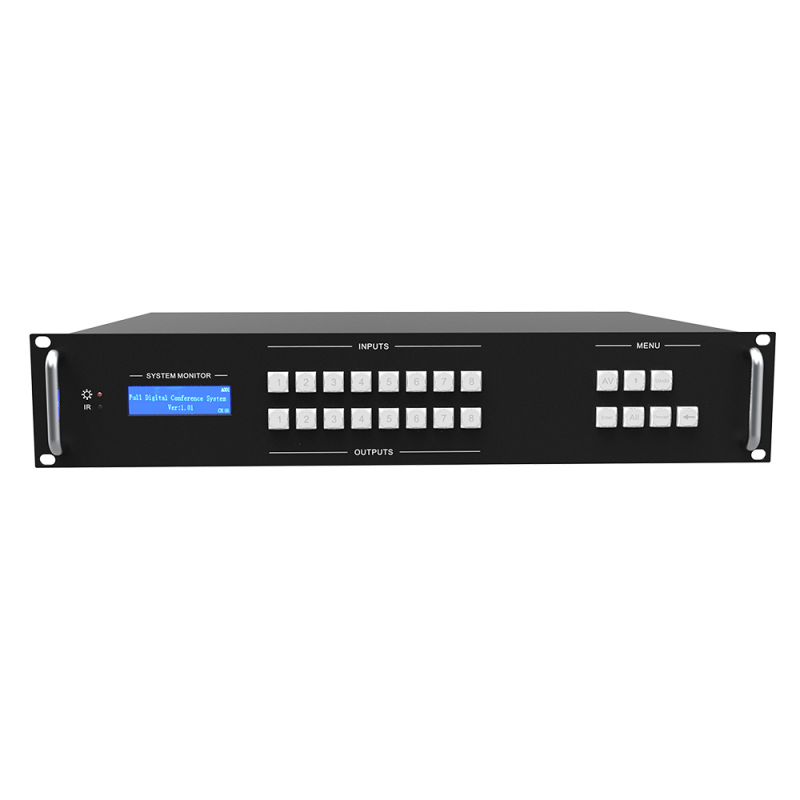

MMX88-N

The MMX88-N is a high-performance 8x8 video and audio modular matrix switcher. It supports different video signals with cross switching. Every AV signal is transmitted and switched independently to decrease signal attenuation. MMX88-N supports various changeable cards including HMDI, DVI, VGA, SDI and HDBaseT etc. Users can choose to insert different signal card for different application.

Features

● Modular chassis with configurable I/O slots, ranging from 4x4 to 8x8.

● Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA cards (Compatible with YUV, YC & CVBS.) to configure any matrix.

● Truly cross-point switching, any input to any output, regardless signal format.

● Supports HDMI1.4a, 3D.

● Integrated HDBaseT technology.

● Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties control.

● HDCP compliant.

● LCD display.
