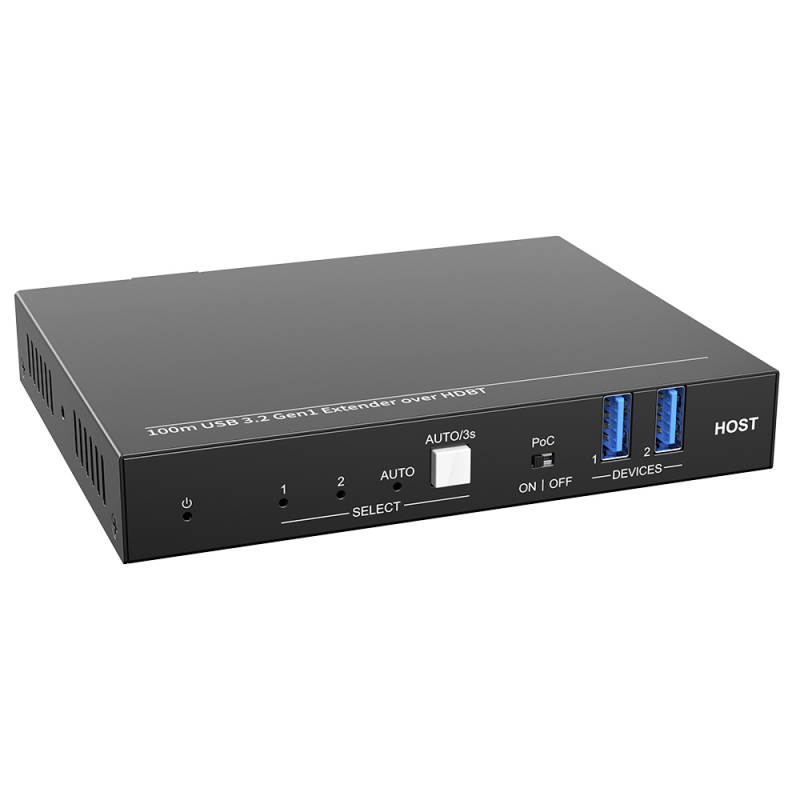

U3 series is an USB 3.2 gen1 100 meters extender product. U3-302H is the host unit of the extender, which contain one USB-B and one USB-C host with auto/manual switch. The unit also have two local USB-A devices port with 5V500mA power supply for the speakphone or U disk connect.
Next:
U3-301DU3 series is an USB 3.2 gen1 100 meters extender product. U3-302H is the host unit of the extender, which contain one USB-B and one USB-C host with auto/manual switch. The unit also have two local USB-A devices port with 5V500mA power supply for the speakphone or U disk connect.
U3 series is an USB 3.2 gen1 100 meters extender product.
U3-301D is the device unit of the extender, which contain three USB-A and one USB-C devices with 5V3A power shared. The U3-301D support 24V PoC or adapter selectable power.
The SCU43-KVM is an HDMI® 18G Web-Conferencing Room matrix Switcher! This matrix switcher simplifies meeting room
and presentation space system integration by providing two video mode (BYOM
mode and Standard mode) with three HDMI® inputs, one USB-C input and three HDMI®
outputs. The USB-C input supports video, data (USB host) and power charging up
to 60w. There is a 4 port USB client hub built with 3 USB host ports
that can be switched independently.
This matrix switcher supports resolution up
to 4K@60Hz@4:4:4, is HDCP 2.2 compliant and
has a built in USB 3.0 switching hub for control and integration of USB devices
such as USB cameras and microphones.
This matrix switcher supports auto switching, allows users to control the system
functionality via TCP/IP, Digital I/O, contact and front
panel.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The TPUH652
is an USB-C KVM Extender Kit that allows one USB channel to be transmitted over
distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz via CAT6A cable.
This USB-C KVM Extender Kit includes one transmitter and one receiver. The transmitter features one USB-C input and one HDBaseT3.0 output. For the USB-C input, it provides an AV ideal interface for connecting to the Macbook or other device with SlimPort output. And there's also a USB-C port for charging devices. The receiver features one HDMI output, one HDBaseT3.0 input and 4 USB 2.0 ports for connecting with KVM device such as camera, keyboard and mouse.
The SCU85T-KVM KIT is a 8 x 5 Switcher/Processor KIT. The matrix kit
includes one matrix and two receivers.
This matrix supports eight inputs including seven HDMI and one powered USB-C. Other
features include both HDMI and HDBaseT outputs, an ethernet passthrough port, four audio inputs and two audio
outputs. This feature allows the audio mixing, Mic with phantom power selection
and AEC noise cancellation, the matrix also support 12 flexible Multi-view
configurations for showing up to 4 sources at one screen.
The WUB2 is a10G USB hub, which is designed to switch the host and connect KVM devices to control the host. The hub can be controlled by button in front panel, RS232 and GPIO.
The MUB44 is a 4x4 USB 3.2 Matrix. This matrix allowing 4 x USB devices to be shared between 4 x host devices, supporting Plug-and-Play. The USB data transfer rate is up to 5Gbps.
This Matrix provides advanced features including aweb interface modulefor control and configuration of the Matrix,along with RS-232 for seamless control integration.
The
TPUB201 is an extender kit which consists of a transmitter (Tx) and a receiver
(Rx). It serves as a four in one USB hub and extends USB 2.0 signal up to 50
meters over a Cat5e/6/7 cable.
The
transmitter is powered by the computer and the power supply is at the remote
receiver that’s helps provide sufficient power to any type of USB device, such
as flash drives, keyboards, mouses, cameras, or printers, etc.
The FOUB30
is a USB optical fiber extender uses optical fiber conversion technology to
realize the optical fiber transmission of USB3.1/2.0/1.1 signals. When used for
long-distance transmission of USB3.1 signals, the data rate can up to 5Gbps,
and the non-real-time transmission distance can be up to 300m and the real-time
transmission distance can up to 100m by using single-mode or multi-mode fiber.
When used for long-distance transmission of USB2.0/1.1, the non-real-time
transmission distance can up to 10km and the real-time transmission can up to
6km by using single-mode fiber, or the transmission distance can up to 500m by
using multi-mode fiber.
The
extender adopts metal enclosure and has four mounting holes for easy
installation. It has an integrated USB 3.1 hub with four ports and supports
Plug-and-Play (PnP), no need to install driver is required.
The SCU11-KVM is a USB-C to HDMI® converter.
This converter is designed to convert 4K@60Hz 4:4:4(max) USB-C video input to
4K@60Hz 4:4:4(max) HDMI® video output. For the USB-C, it also supports USB 3.1
Gen2 data transfer and 60W fast-charging.
In addition, the converter includes three USB 3.1 ports
and one Ethernet Gigabit LAN port. It also supports plug and play, no software
drivers required.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The SCU21T-KVM
is an 18Gbps HDMI® switcher kit. It supports up to 4K/60/4:4:4, HDR10 and Dolby
Vision, HDCP 2.2. It also supports uncompressed transmission of 18Gbps signals
with a distance of up to 100m. At the same time, it can be connected to KVM
equipment, which is very suitable for equipment connection and signal
transmission in conference rooms. The switcher kit also supports RS232&CEC control
and bidirectional 48V PoC.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The SCU21E-CODEC is an 18G HDMI® 2x1 Presentation Switcher to switch HDMI® input or USB-C input to one HDMI® output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D.In addition, there is smart built-in EDID setting can be selected by the 4-pin DIP switch on the front panel.
The switcher supports stereo and multichannel audio on the HDMI® inputs. In addition to the audio embedded in the HDMI® output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB port for host connection, and two type-A USB ports for HID devices such as camera, microphone, keyboard etc.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
