TPUH701T is an HDMI
18Gbps high bandwidth wall plate transmitter designed for connecting, switching
and extending HDMI and USB-C inputs to displays or projectors in conference
rooms, classrooms and control centers. Inputs are automatically switched (or
manually selected) to provide smart transfer from one source to the next.
Certified HDBaseT technology transmits HD video, power, RS232 and IR control.
This device uses Power over Cable (PoC) to provide the flexibility for
powering.

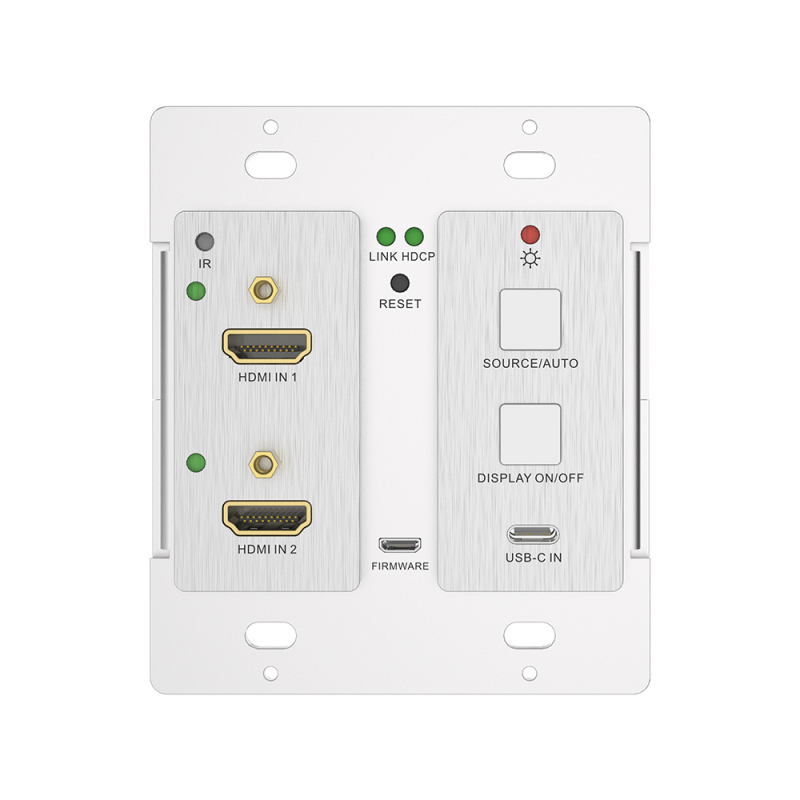

● 4K HDMI wall-plate transmitter with 2 HDMI IN, and 1 USB-C IN.
● Supports HDMI 4Kx2K/60Hz/4:4:4.
● HDCP 2.2 compliant.
● Video source auto-switching.
● Video lossless compression for HDBaseT technology, transmission up to 40m@4K and 70m@1080p over CATx cable.
● Displays can be turned ON/OFF via CEC & RS232 commands by ‘DISPLAY ON/OFF’ button.
● RS232 and IR pass through.
● IR learning to control display on/off.
● EDID pass through.
● Two-way PoC.
