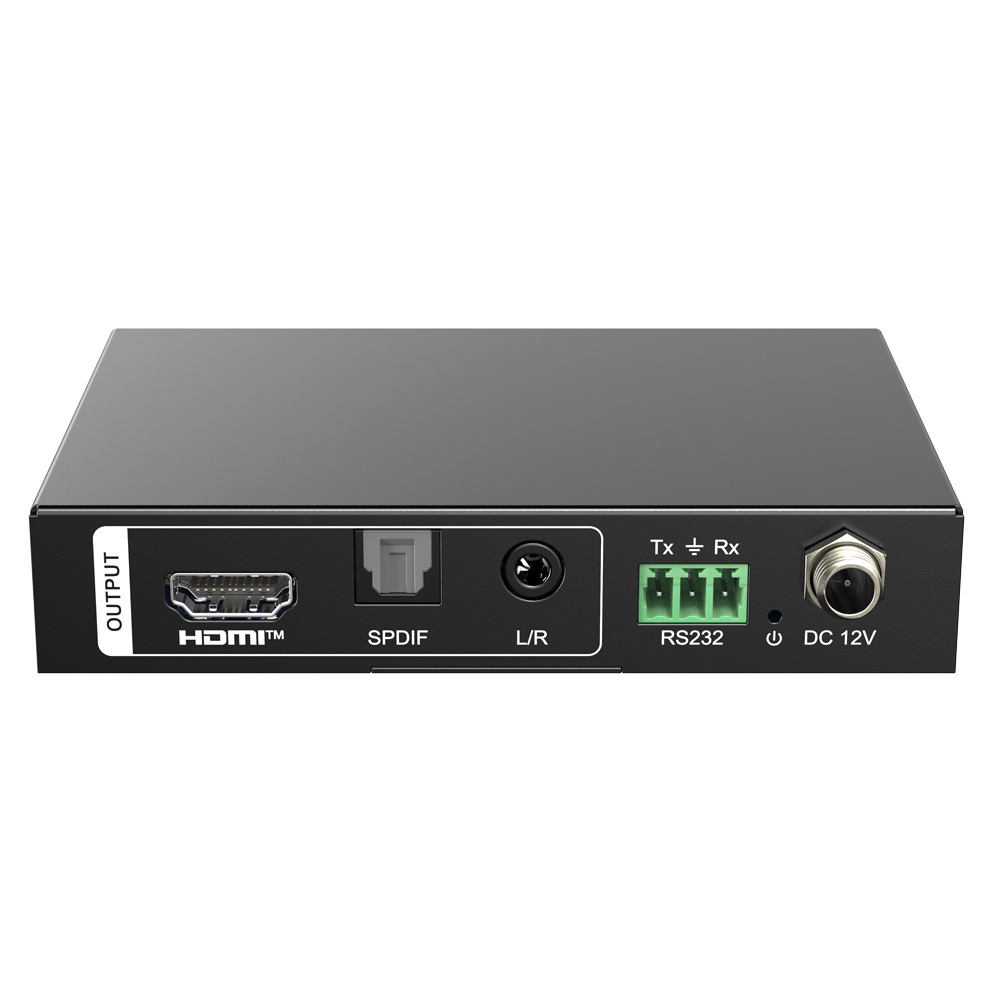

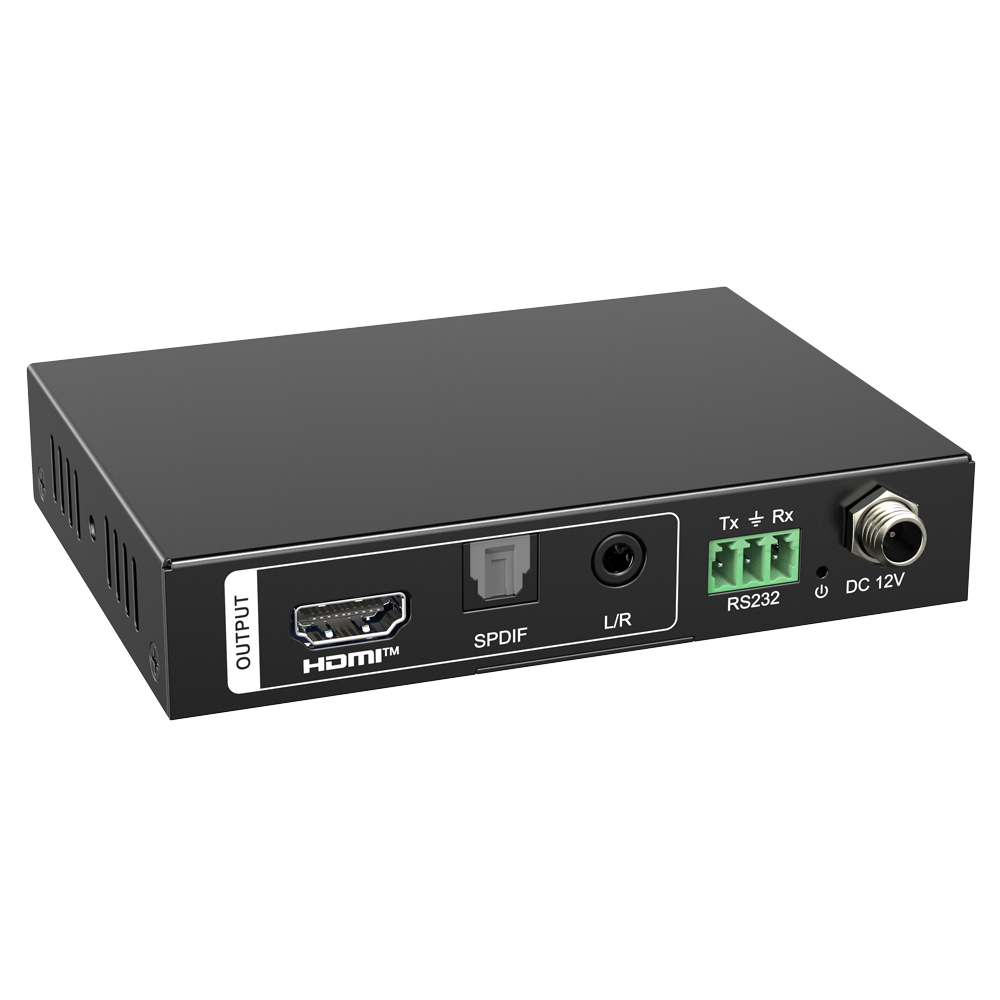

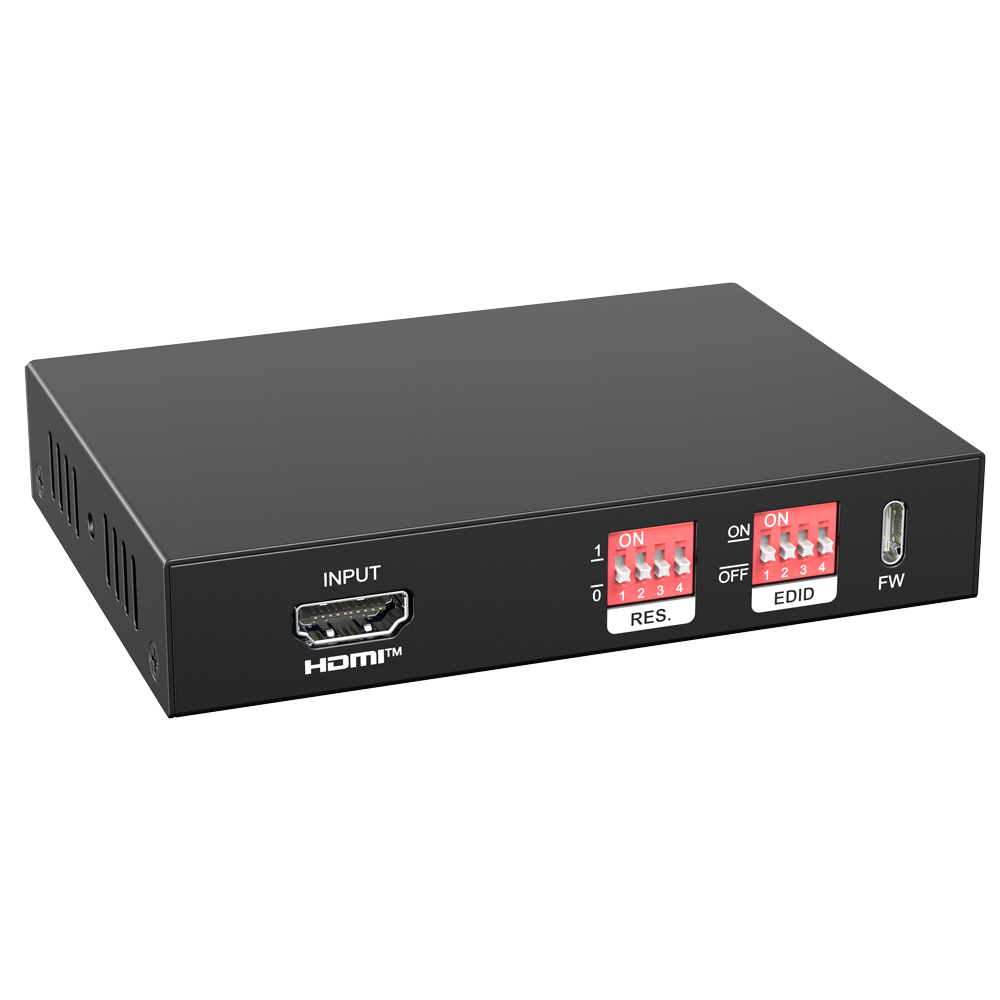

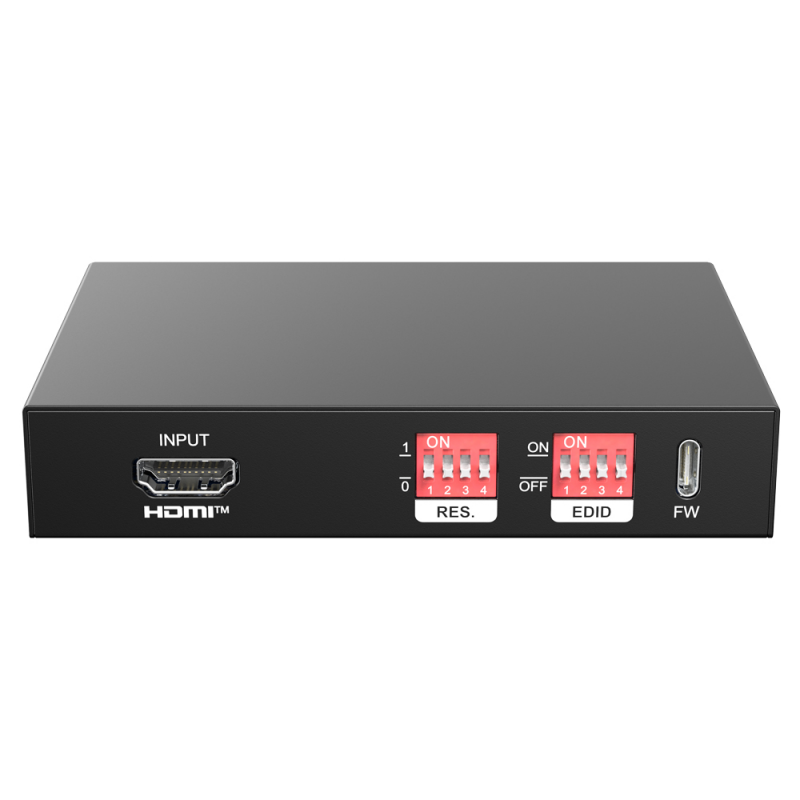

The SCU11 is a compact yet powerful HDMI full scaler with audio breakout features. It delivers full 18Gbps HDMI with HDCP 2.2 compliance. It also features scaling up to 4K@60Hz RGB 8-bit, and downscaling to 640×480@60Hz. DIP switchers for scaling and EDID make is easy to switch video resolution. RS232 is also provided for advanced control.

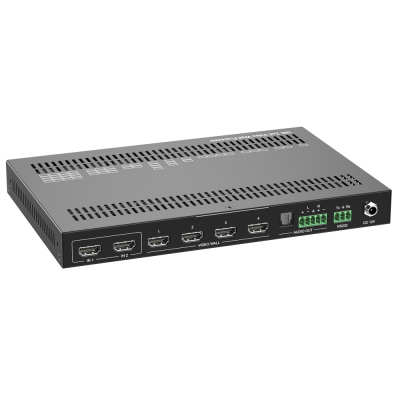

The SCU-VW 4 is an 18G 2x4 Video Wall Processor delivers exceptional performance with two HDMI inputs supporting up to 4K@60Hz 4:4:4 for high-quality visuals, while the HDMI output is fixed at 1080p@60Hz for reliable display compatibility. It offers flexible control through front panel buttons and RS232, ensuring seamless operation. The device supports cascading for expanded setups, audio extraction for enhanced sound integration, and features eight selectable video wall modes to suit various configurations. Additionally, it provides output video rotation and BEZEL mode for precise and customizable display adjustments.
The SCU11 is a compact yet powerful HDMI full scaler with audio breakout features. It delivers full 18Gbps HDMI with HDCP 2.2 compliance. It also features scaling up to 4K@60Hz RGB 8-bit, and downscaling to 640×480@60Hz. DIP switchers for scaling and EDID make is easy to switch video resolution. RS232 is also provided for advanced control.
The SF41-H2 is a 4x1 switcher with two USB-C and two HDMI 18G input ports, plus one HDMI 18G output. It supports manual/automatic switching and resolutions up to 4K@60Hz 4:4:4. The USB-C ports provide 15W/60W/100W PD to source PCs. It includes one USB-C and one USB-B as HDMI hosts, a 5-pin balanced audio output, and two USB-A/one USB-C ports for KVM connectivity (up to 5Gbps). An RS232 port enables control/firmware upgrades, and an RJ-45 port accesses the GUI. Features include scaling, EDID, and HDCP management.
THe WUH3C-8K is an HDMI 8K 3x1 Switcher.
It is an auto switcher with three HDMI video inputs and one HDMI output.
It supports HDMI video resolution up to 8K@60Hz 4:2:0 HDR and Dolby Vision.
The switcher can be controlled via IR with the remote, or from the source button on the front panel of the switcher.
The WUH4ARC-8K is an auto switcher with four HDMI video inputs and one
HDMI output. This switcher supports HDMI video resolution up to 8K@60Hz 4:2:0
HDR+ and High Definition audio. Except passing EDID information from the display, there are multiple built-in EDID
settings to simplify an installation. The switcher will de-embed digital stereo
audio to provide an analog audio source for an existing audio system. The
switcher also supports enhanced audio return channel (eARC) for transmitting
audio back to HDMI input port from the connected display.
The WUH3C-H2 is an
HDMI 18Gbps 3x1 Switcher. It is an auto switcher with three HDMI video inputs
and one HDMI output. It supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4
HDR, Dolby Vision and multichannel audio.
The WUH4ARC-H2 is a
HDMI 18Gbps high bandwidth 4x1 switcher with audio de-embedded, support ARC and
EDID management.
The BYOD-E is an
HDMI 18G 3x1 Multi-format Presentation Switcher converting AV signal from HDMI,
Mini DP and USB-C inputs to HDMI output.
The BYOD is a
Multiformat Presentation Switcher converting AV signal from Lightning, USB-C,
MINI DP, DP, HDMI type-A and HDMI type-D to HDMI.
The SCU41E allows
selection of four different sources (three HDMI inputs and one DisplayPort
input), and will simultaneously switch the selected video to HDMI output. It
supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In
addition, there is the smart built-in EDID setting can be selected by the 4-pin
DIP switch on the rear panel.
The SCU61E allows
selection of six different sources (three HDMI inputs, one USB-C input, one
DisplayPort input and one VGA input), and will switch the selected video to
HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P,
and 3D. In addition, there is the smart built-in EDID setting can be selected
by the 4-pin DIP switch on the rear panel.
The SCU41-MV is
seamless 4K Multi-view scaler switcher designed to enable a true 4K display.
The switcher features four HDMI inputs and one HDMI output which allows you to
display four video sources on one display. It also provides a line input, 1 mix
input, 1 SPDIF output and 1 analog output for audio processing.
