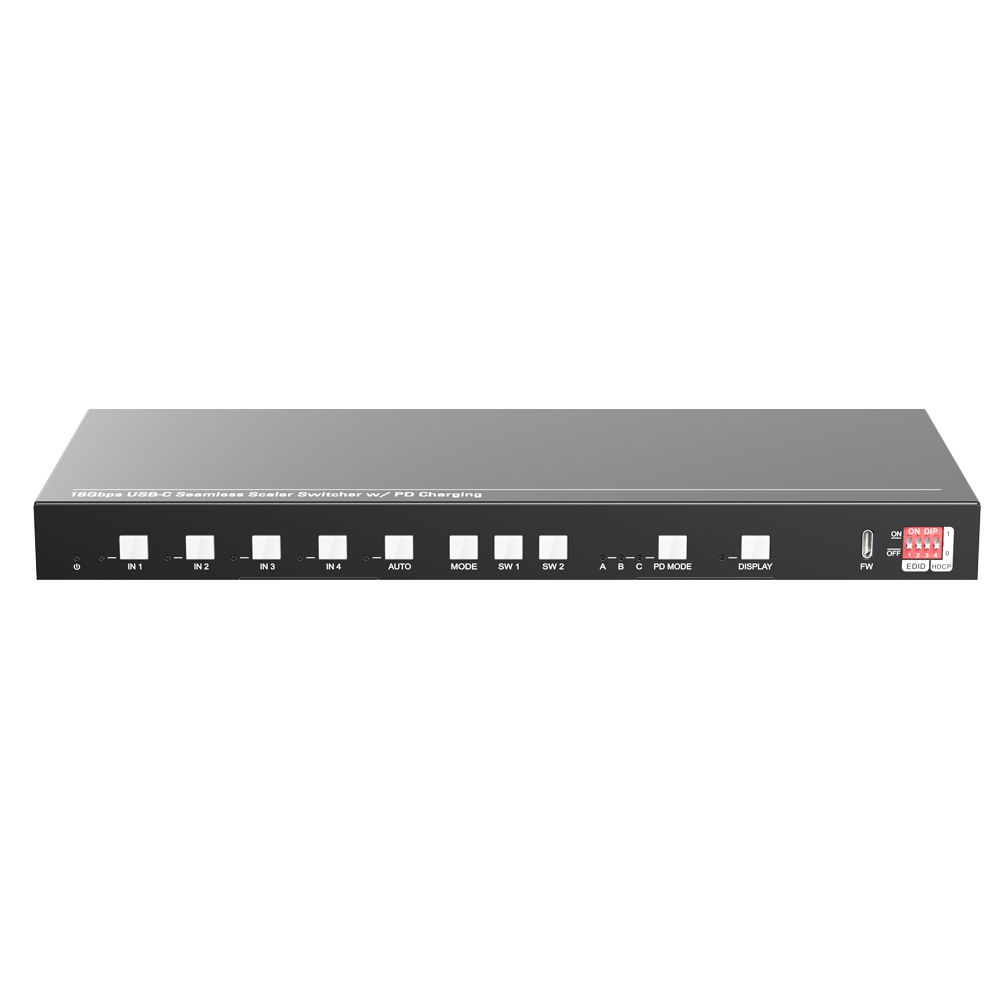

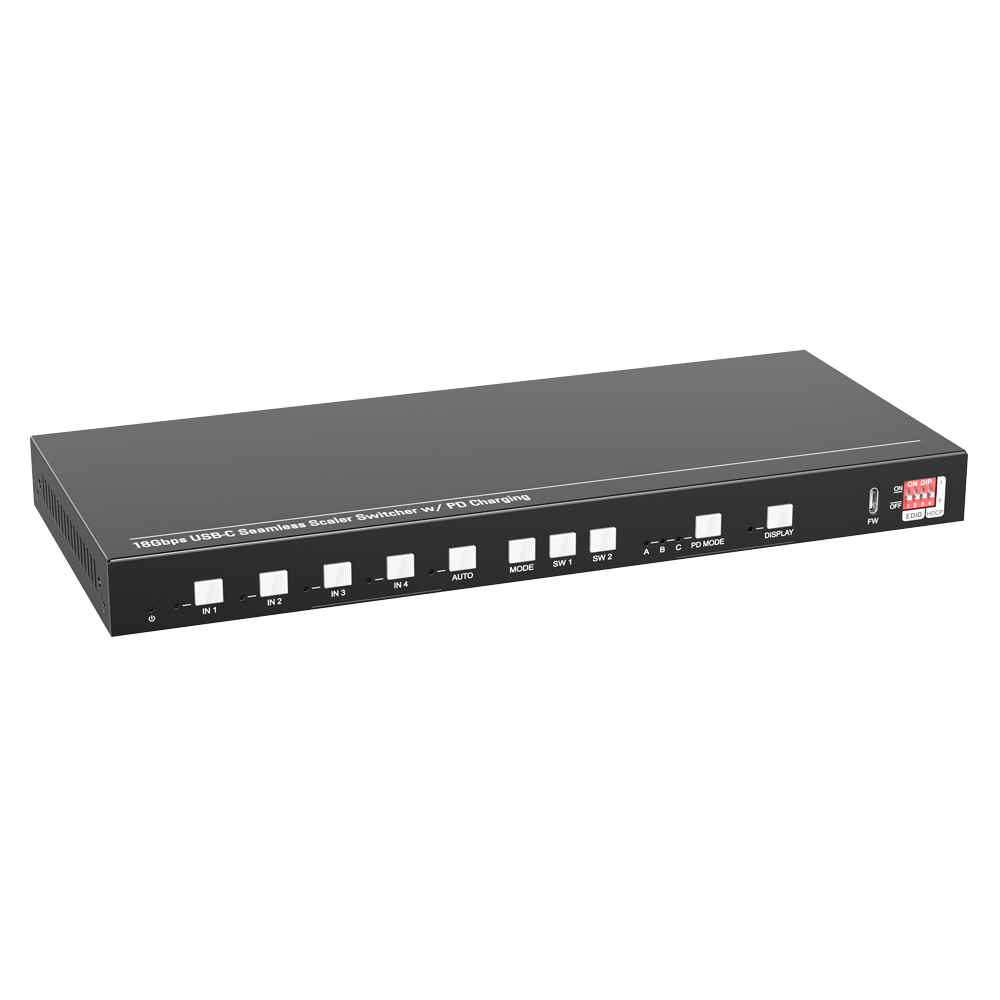

SF41-H2

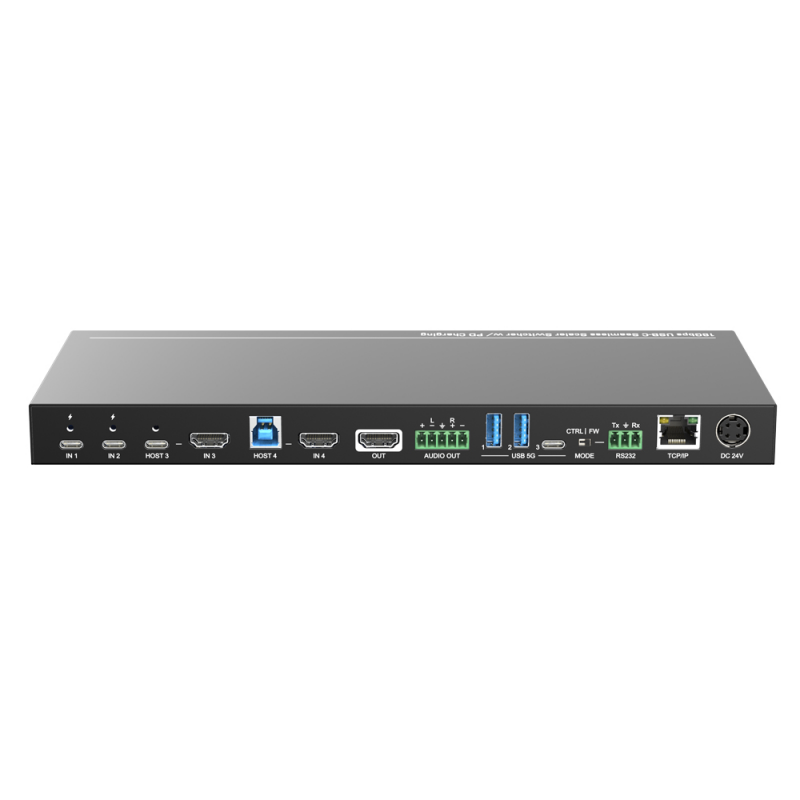

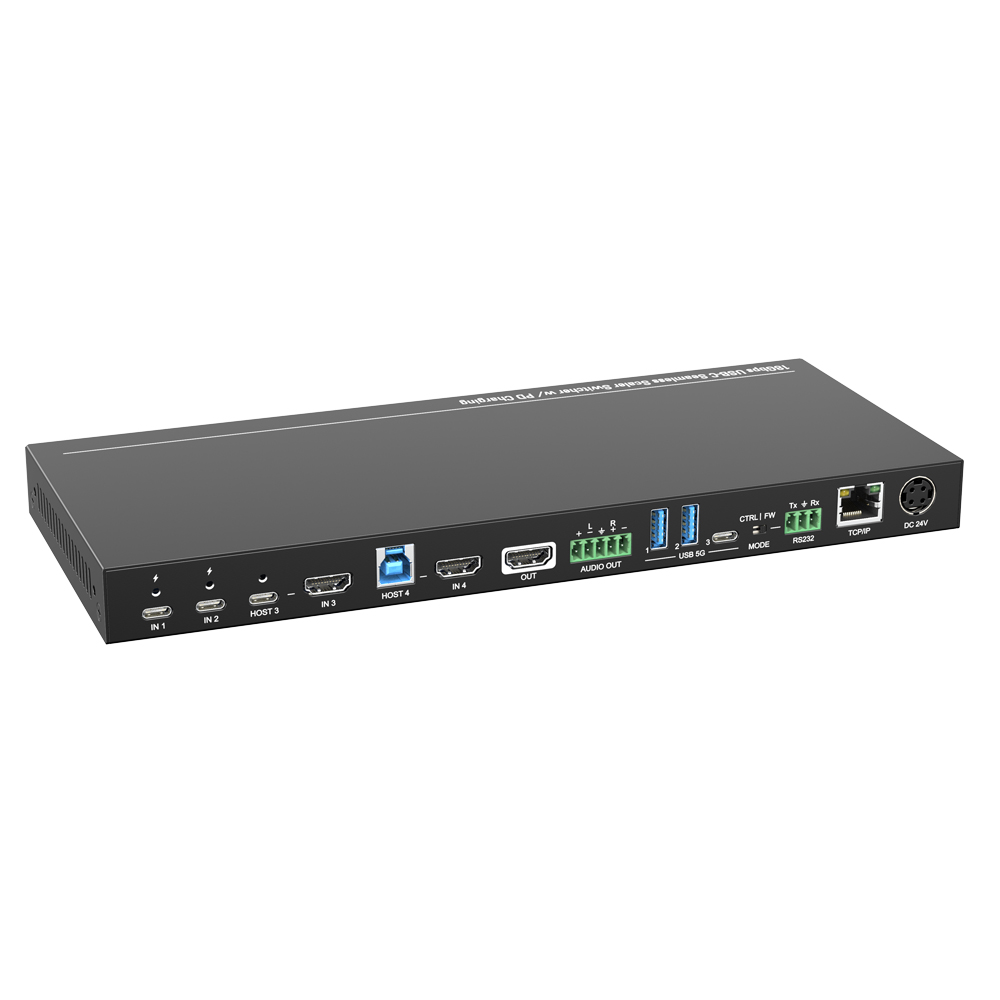

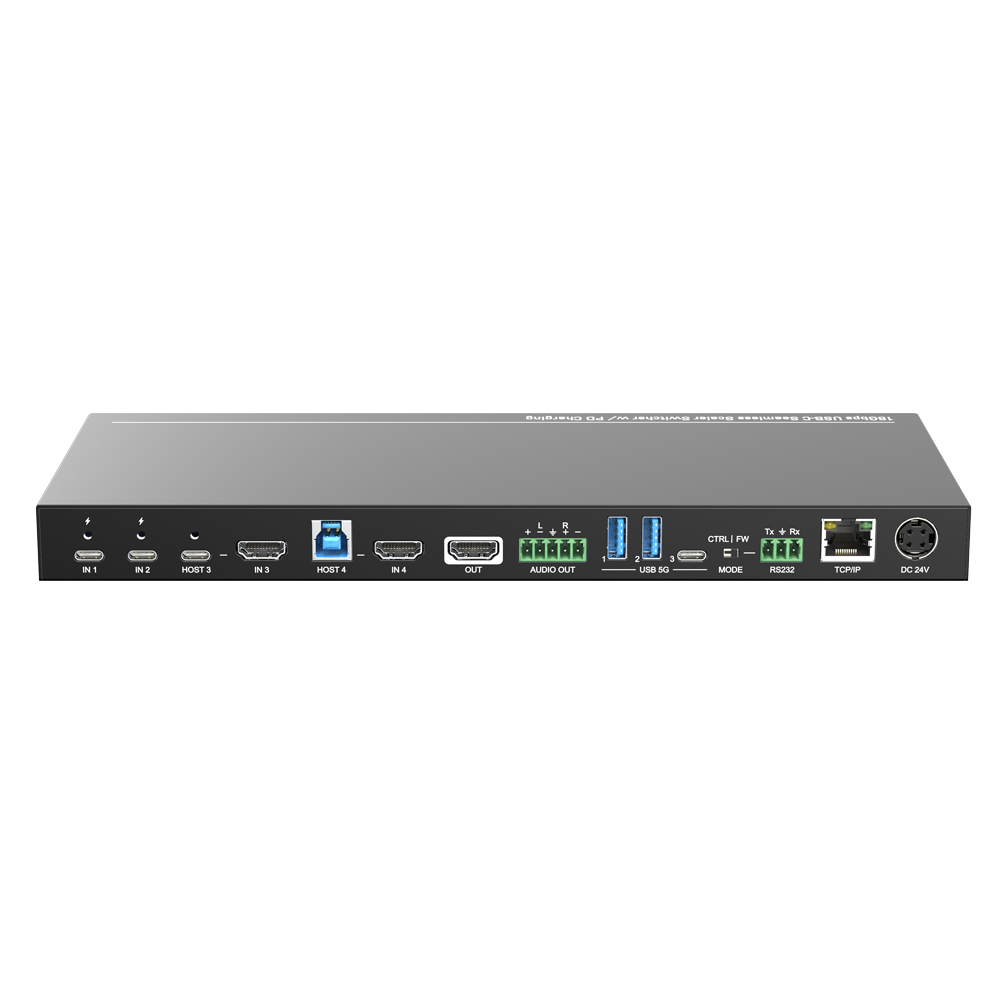

The SF41-H2 is a 4x1 switcher with two USB-C and two HDMI 18G input ports, plus one HDMI 18G output. It supports manual/automatic switching and resolutions up to 4K@60Hz 4:4:4. The USB-C ports provide 15W/60W/100W PD to source PCs. It includes one USB-C and one USB-B as HDMI hosts, a 5-pin balanced audio output, and two USB-A/one USB-C ports for KVM connectivity (up to 5Gbps). An RS232 port enables control/firmware upgrades, and an RJ-45 port accesses the GUI. Features include scaling, EDID, and HDCP management.

Features
  • 1. Up & down scaling for alVESA resolutions & frame rate.
  • 2. 4 seamless switchable inputs (2x HDMI, 2x USB-C).
  • 3. Video resolution up to 4K@60Hz 4:4:4.
  • 4. Support USB-C inputs w/ 100W charging.
  • 5. Supports up to 5Gbps USB data rate.
  • 6. PIP or PBP 2-window multiview output.
  • 7. Power supply by DC 24V 6.5A PSU.
  • 8. Controby buttons, RS-232, TCP/IP(Web-GUI).
