U3-302H U3 series is an USB 3.2 gen1 100 meters extender product. U3-302H is the host unit of the extender, which contain one USB-B and one USB-C host with auto/manual switch. The unit also have two local USB-A devices port with 5V500mA power supply for the speakphone or U disk connect.

U3-301D

U3 series is an USB 3.2 gen1 100 meters extender product.

U3-301D is the device unit of the extender, which contain three USB-A and one USB-C devices with 5V3A power shared. The U3-301D support 24V PoC or adapter selectable power.

SCU43-KVM

The SCU43-KVM is an HDMI® 18G Web-Conferencing Room matrix Switcher! This matrix switcher simplifies meeting room and presentation space system integration by providing two video mode (BYOM mode and Standard mode) with three HDMI® inputs, one USB-C input and three HDMI® outputs. The USB-C input supports video, data (USB host) and power charging up to 60w. There is a 4 port USB client hub built with 3 USB host ports that can be switched independently.

This matrix switcher supports resolution up to 4K@60Hz@4:4:4, is HDCP 2.2 compliant and has a built in USB 3.0 switching hub for control and integration of USB devices such as USB cameras and microphones.

This matrix switcher supports auto switching, allows users to control the system functionality via TCP/IP, Digital I/O, contact and front panel.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

TPUH652

The TPUH652 is an USB-C KVM Extender Kit that allows one USB channel to be transmitted over distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz via CAT6A cable.

SCU85T-KVM KIT

The SCU85T-KVM KIT is a 8 x 5 Switcher/Processor KIT. The matrix kit includes one matrix and two receivers.

This matrix supports eight inputs including seven HDMI and one powered USB-C. Other features include both HDMI and HDBaseT outputs, an ethernet passthrough port, four audio inputs and two audio outputs. This feature allows the audio mixing, Mic with phantom power selection and AEC noise cancellation, the matrix also support 12 flexible Multi-view configurations for showing up to 4 sources at one screen.

WUB2 NEW The WUB2 is a10G USB hub, which is designed to switch the host and connect KVM devices to control the host. The hub can be controlled by button in front panel, RS232 and GPIO.

MUB44

The MUB44 is a 4x4 USB 3.2 Matrix. This matrix allowing 4 x USB devices to be shared between 4 x host devices, supporting Plug-and-Play. The USB data transfer rate is up to 5Gbps.

This Matrix provides advanced features including aweb interface modulefor control and configuration of the Matrix,along with RS-232 for seamless control integration.

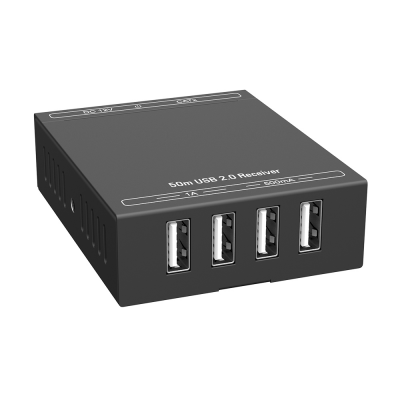

TPUH201

The TPUB201 is an extender kit which consists of a transmitter (Tx) and a receiver (Rx). It serves as a four in one USB hub and extends USB 2.0 signal up to 50 meters over a Cat5e/6/7 cable.

The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.

FOUB30

The FOUB30 is a USB optical fiber extender uses optical fiber conversion technology to realize the optical fiber transmission of USB3.1/2.0/1.1 signals. When used for long-distance transmission of USB3.1 signals, the data rate can up to 5Gbps, and the non-real-time transmission distance can be up to 300m and the real-time transmission distance can up to 100m by using single-mode or multi-mode fiber. When used for long-distance transmission of USB2.0/1.1, the non-real-time transmission distance can up to 10km and the real-time transmission can up to 6km by using single-mode fiber, or the transmission distance can up to 500m by using multi-mode fiber.

The extender adopts metal enclosure and has four mounting holes for easy installation. It has an integrated USB 3.1 hub with four ports and supports Plug-and-Play (PnP), no need to install driver is required.

SCU11-KVM

The SCU11-KVM is a USB-C to HDMI® converter. This converter is designed to convert 4K@60Hz 4:4:4(max) USB-C video input to 4K@60Hz 4:4:4(max) HDMI® video output. For the USB-C, it also supports USB 3.1 Gen2 data transfer and 60W fast-charging.

In addition, the converter includes three USB 3.1 ports and one Ethernet Gigabit LAN port. It also supports plug and play, no software drivers required.

 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

SCU21T-KVM

The SCU21T-KVM is an 18Gbps HDMI® switcher kit. It supports up to 4K/60/4:4:4, HDR10 and Dolby Vision, HDCP 2.2. It also supports uncompressed transmission of 18Gbps signals with a distance of up to 100m. At the same time, it can be connected to KVM equipment, which is very suitable for equipment connection and signal transmission in conference rooms. The switcher kit also supports RS232&CEC control and bidirectional 48V PoC.

 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

SCU21E-CODEC

The SCU21E-CODEC is an 18G HDMI® 2x1 Presentation Switcher to switch HDMI® input or USB-C input to one HDMI® output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D.In addition, there is smart built-in EDID setting can be selected by the 4-pin DIP switch on the front panel.

The switcher supports stereo and multichannel audio on the HDMI® inputs. In addition to the audio embedded in the HDMI® output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB port for host connection, and two type-A USB ports for HID devices such as camera, microphone, keyboard etc.

 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
